Part 2 of 2

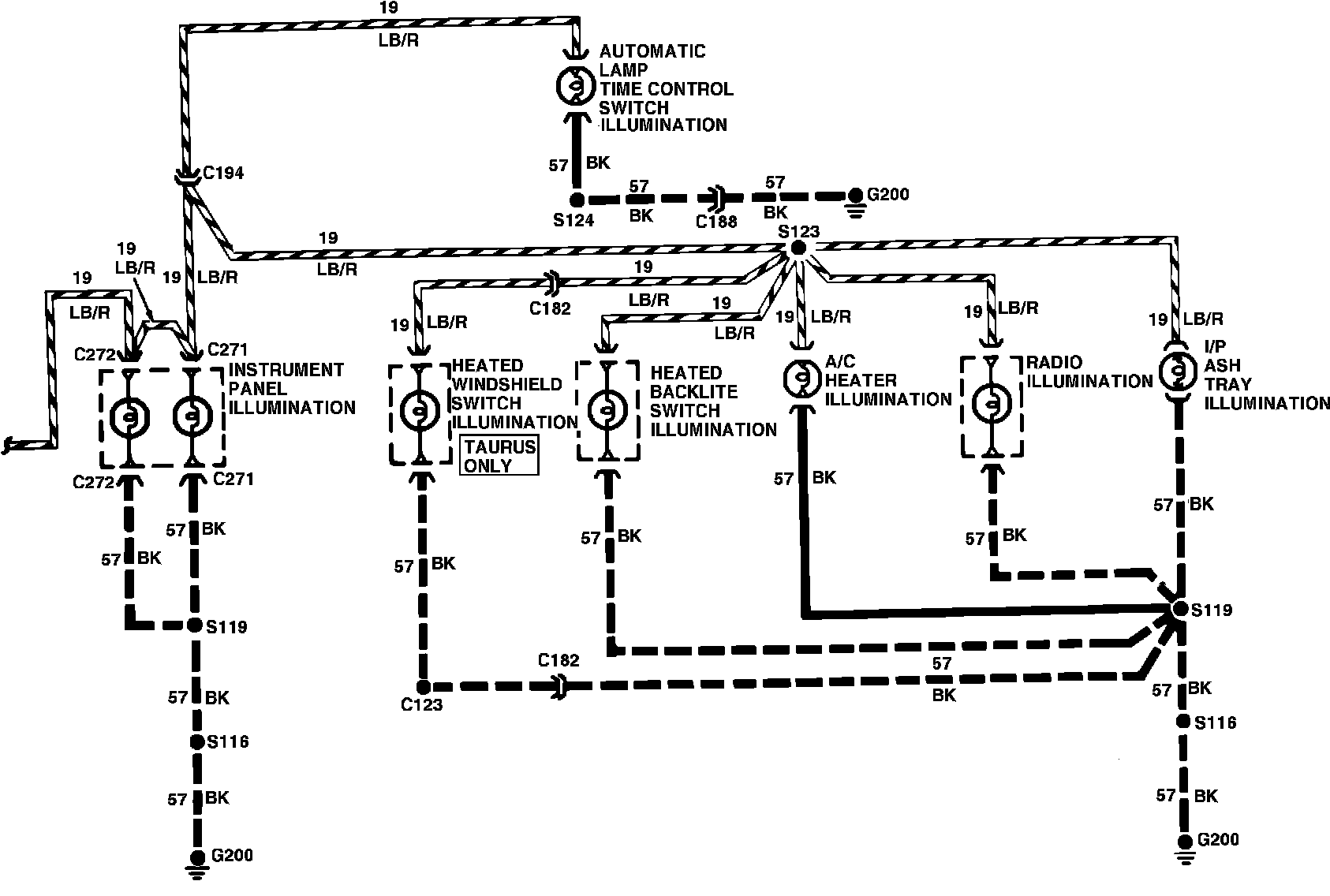

Fig. 43 Instrument Illumination Wiring Circuit (W/Electronic Instrument Cluster, Part 2 of 2). Sable:
