Part 1 of 2

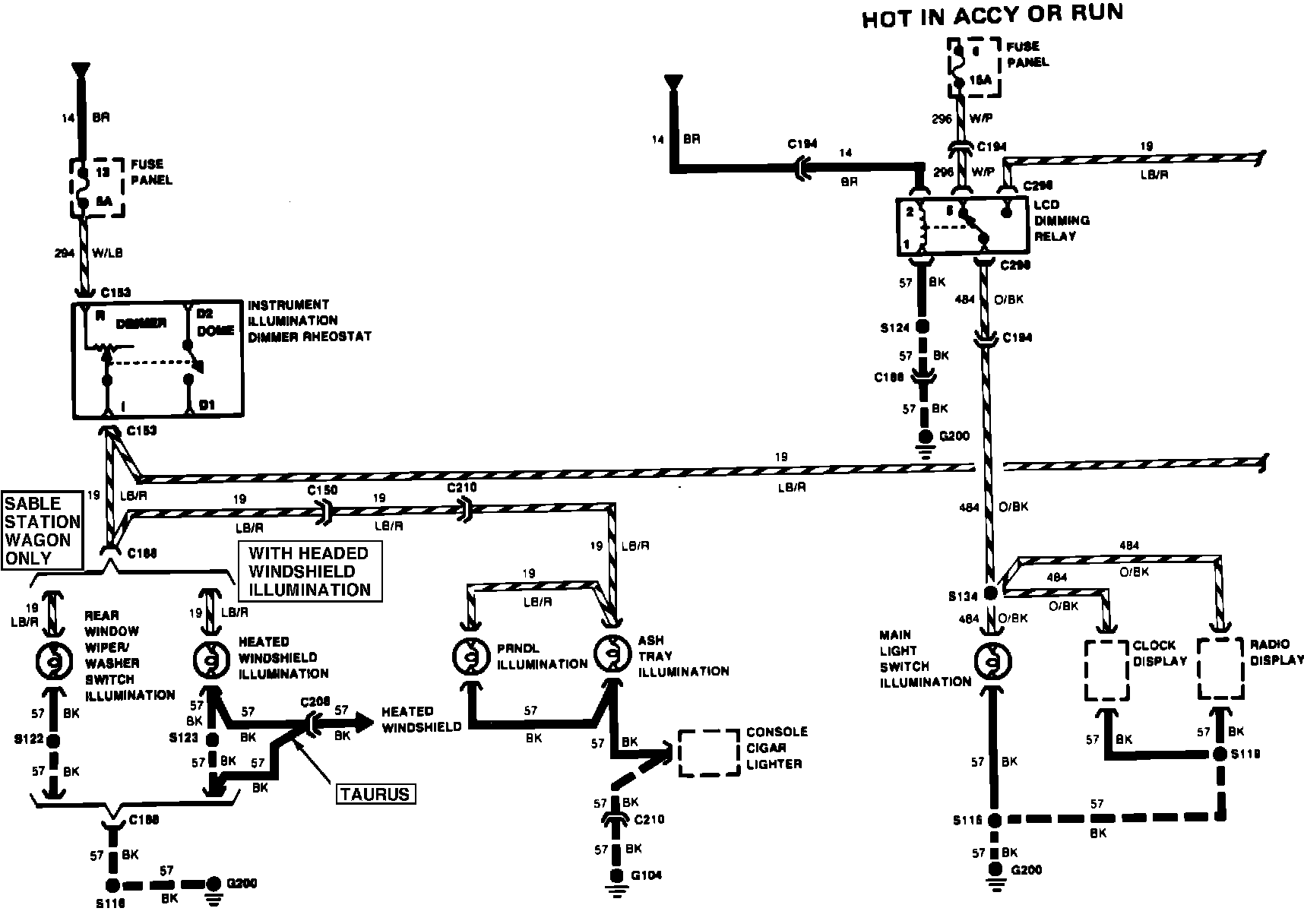

Fig. 41 Instrument Illumination Wiring Circuit (Less Electronic Instrument Cluster & W/auto Lamps, Part 1 of 2). Sable:
