Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Instrument Panel Illumination >> Less Electronic Cluster & Auto Lamps >> Part 1 of 2

Part 1 of 2

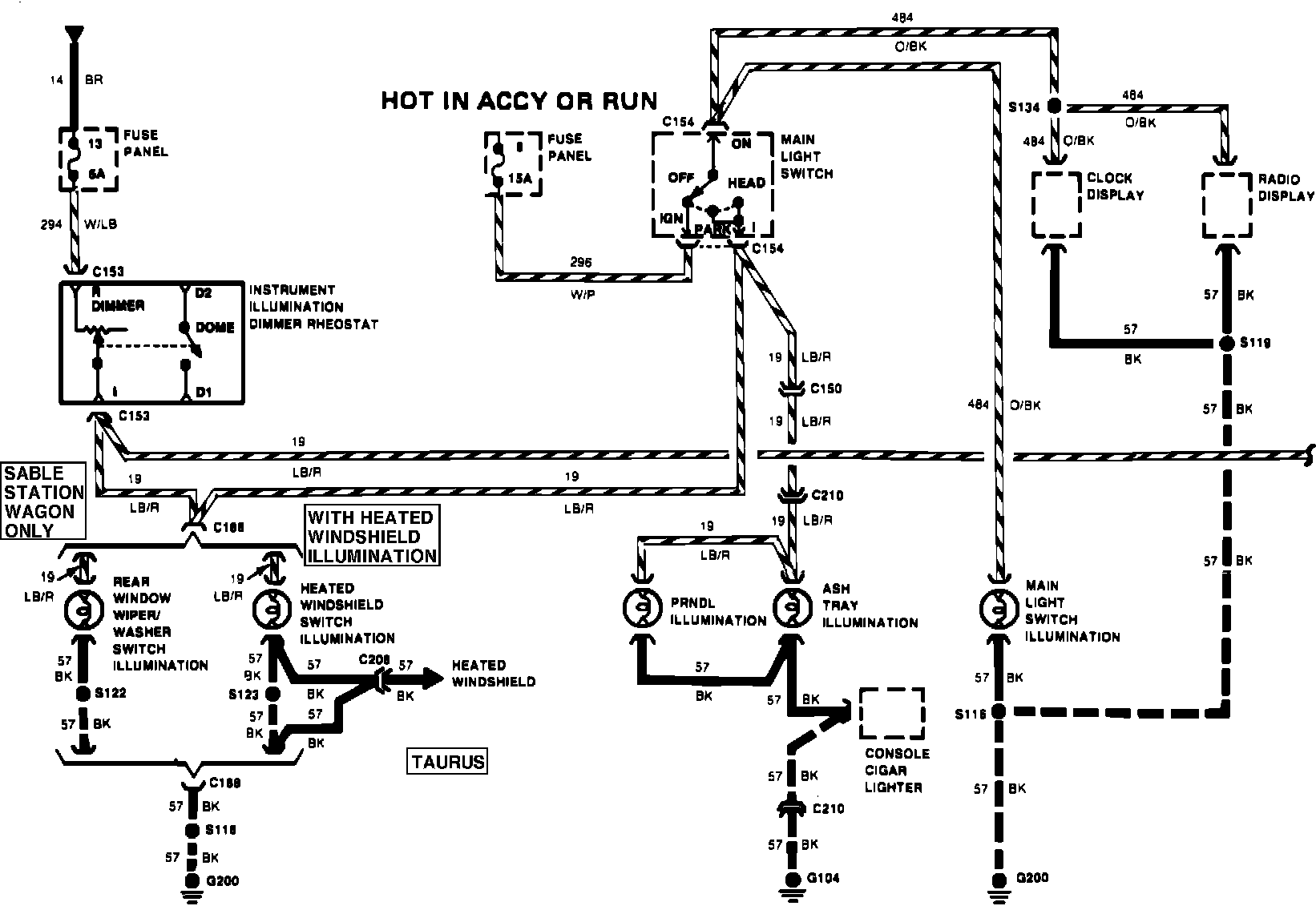

Fig. 38 Instrument Illumination Wiring Circuit (Less Electronic Cluster & Auto Lamps, Part 1 of 2). Sable:
