Lamp Out Indicator

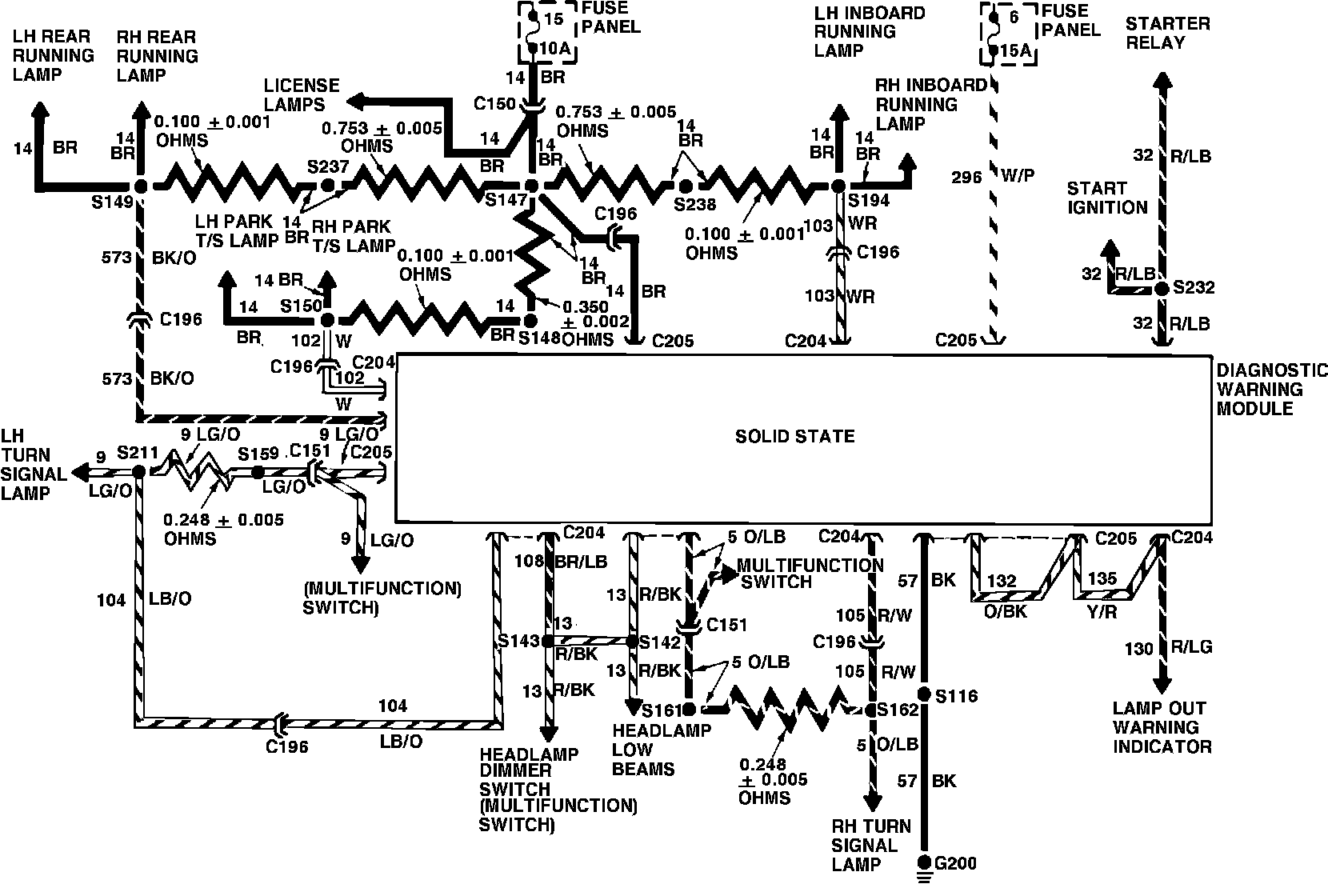

Fig. 47 Lamp out Diagnostic Warning Wiring Circuit. Sable 4 Door Hi-Series Models:
