Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> W/Electronic Cluster & Warning Indicators >> Part 2 of 2

Part 2 of 2

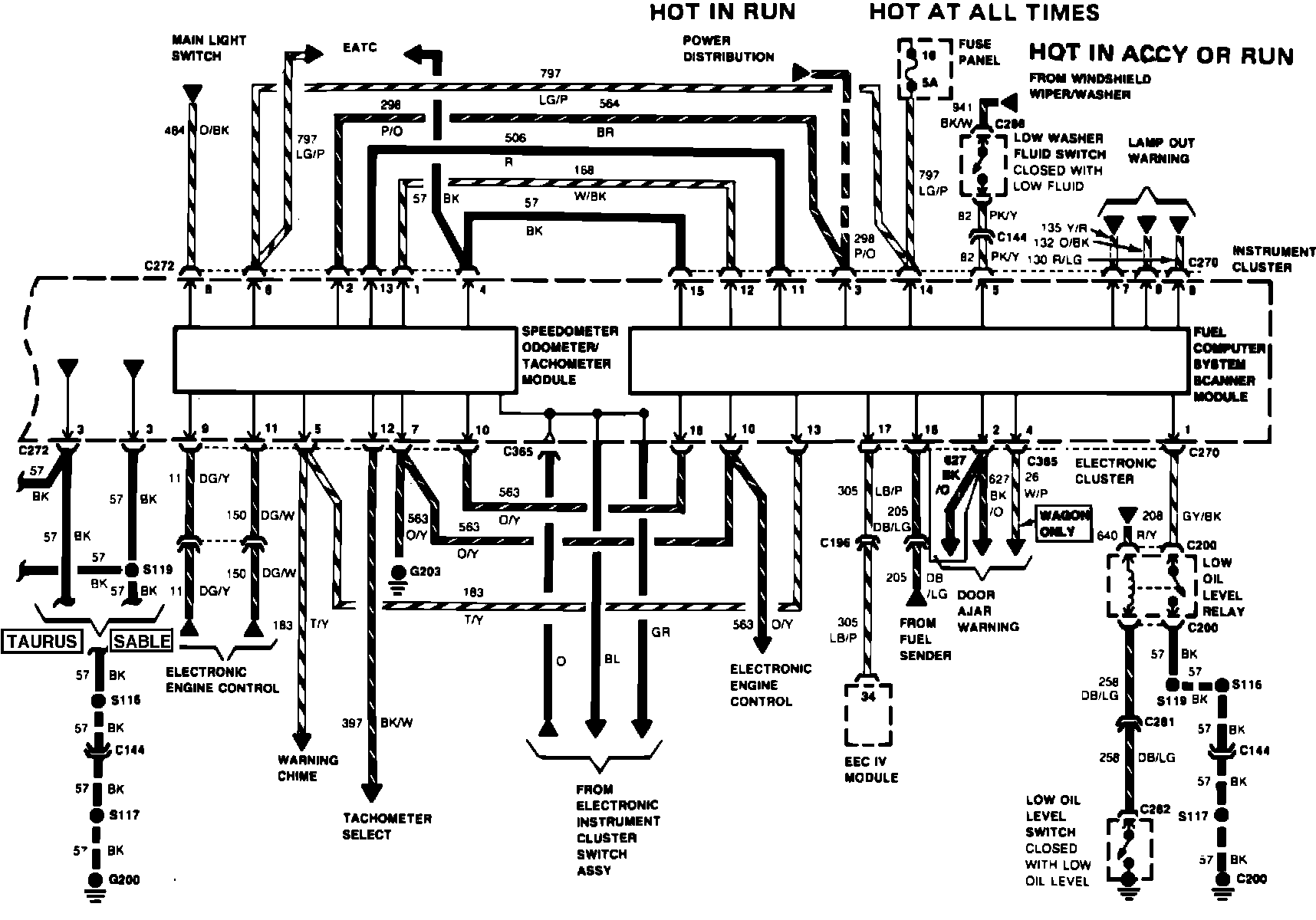

Fig. 37 Instrument Cluster Wiring Circuit (W/Electronic Cluster & Wqarning Indicators, Part 2 of 2):
