1986
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

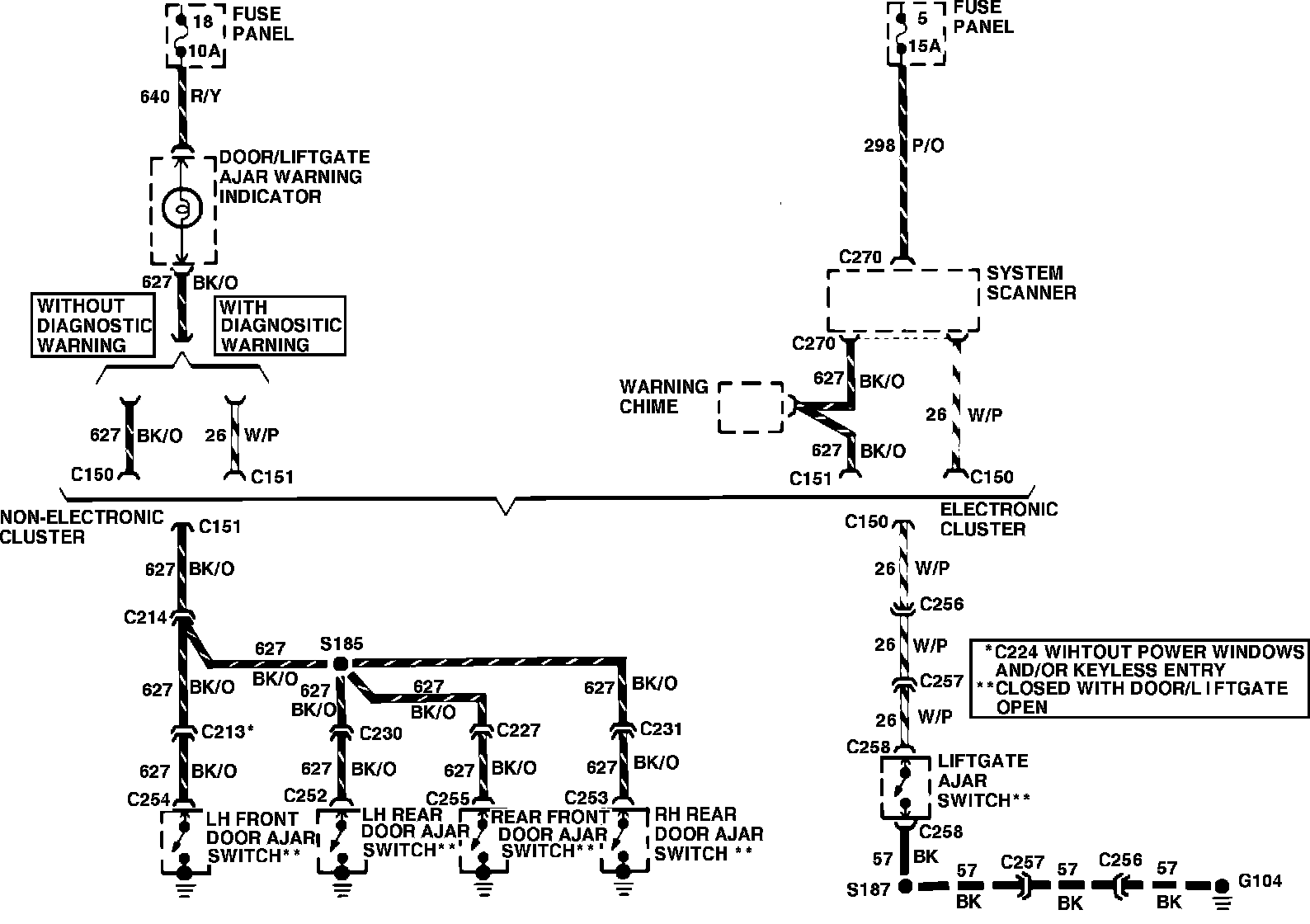

Fig. 11 Door Ajar Warning Wiring Circuit:
