With Electronic Cluster

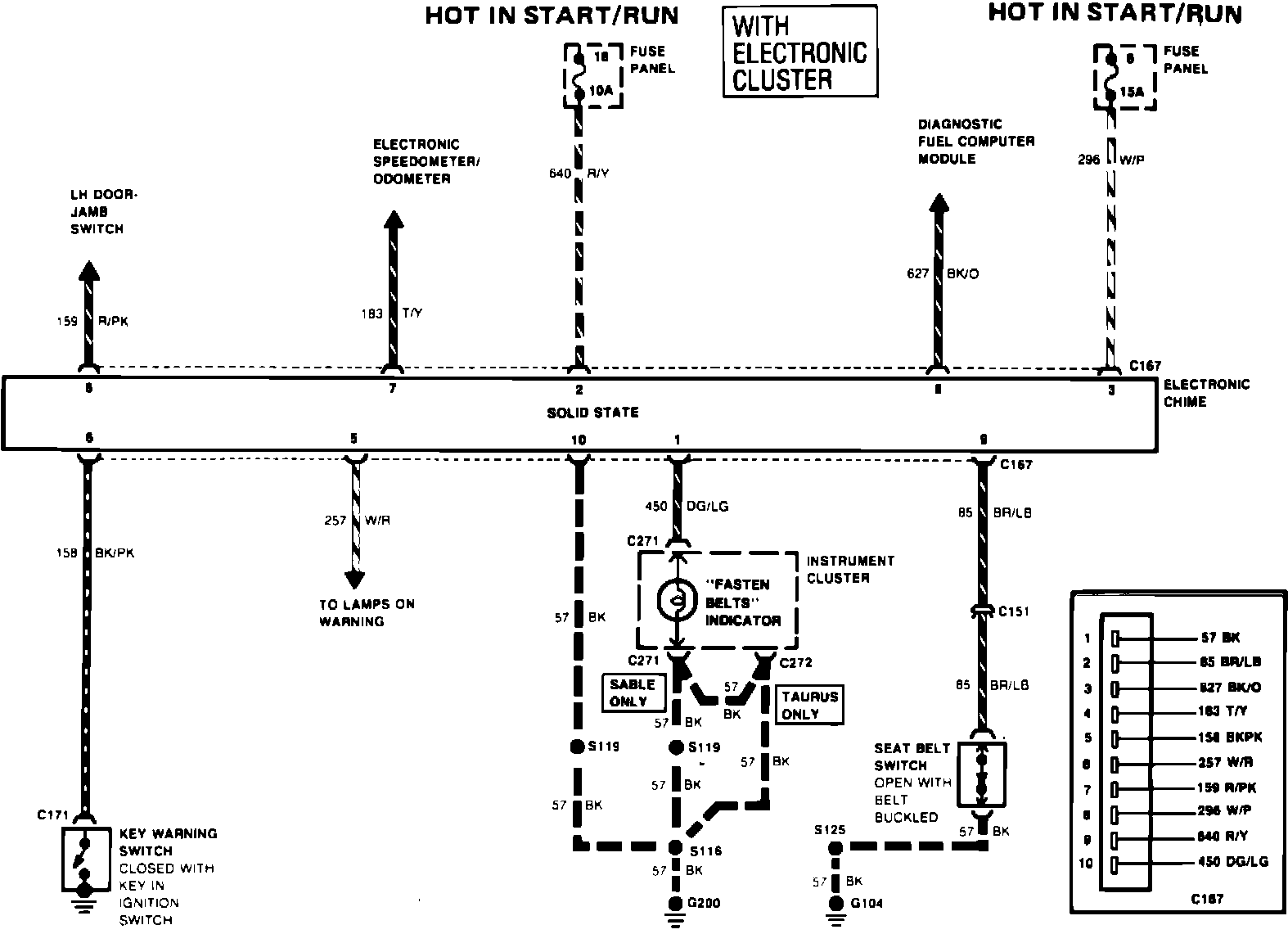

Fig. 31 Ignition Key, Seatbelt & Buzzer Warning Chime Wiring Circuit (W/Electronic Cluster):
