Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Less Electronic Cluster

Less Electronic Cluster

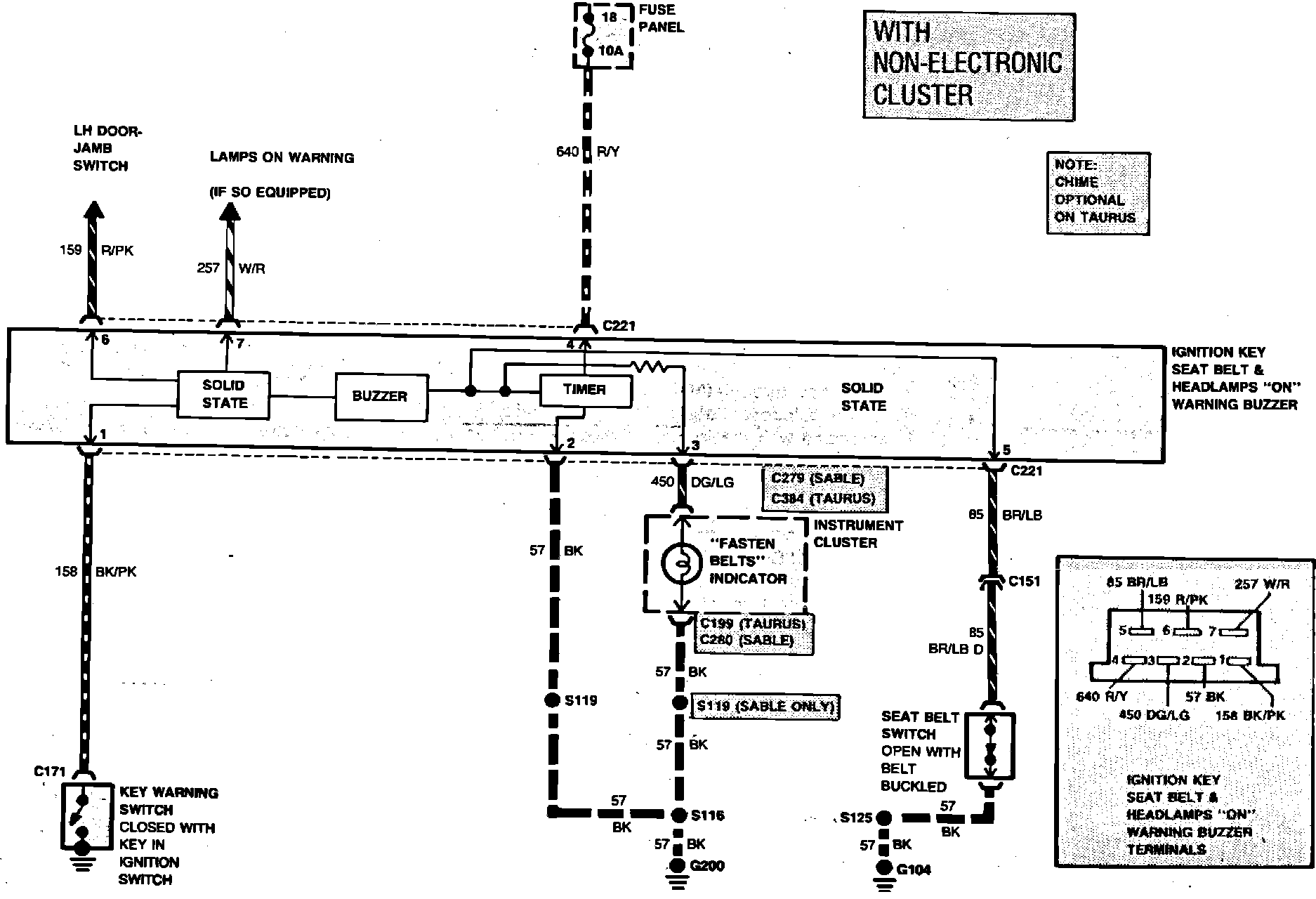

Fig. 30 Ignition Key, Seatbelt & Buzzer Warning Chime Wiring Circuit (Less Electronic Cluster):
