Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> G: Speed Sensor

G: Speed Sensor

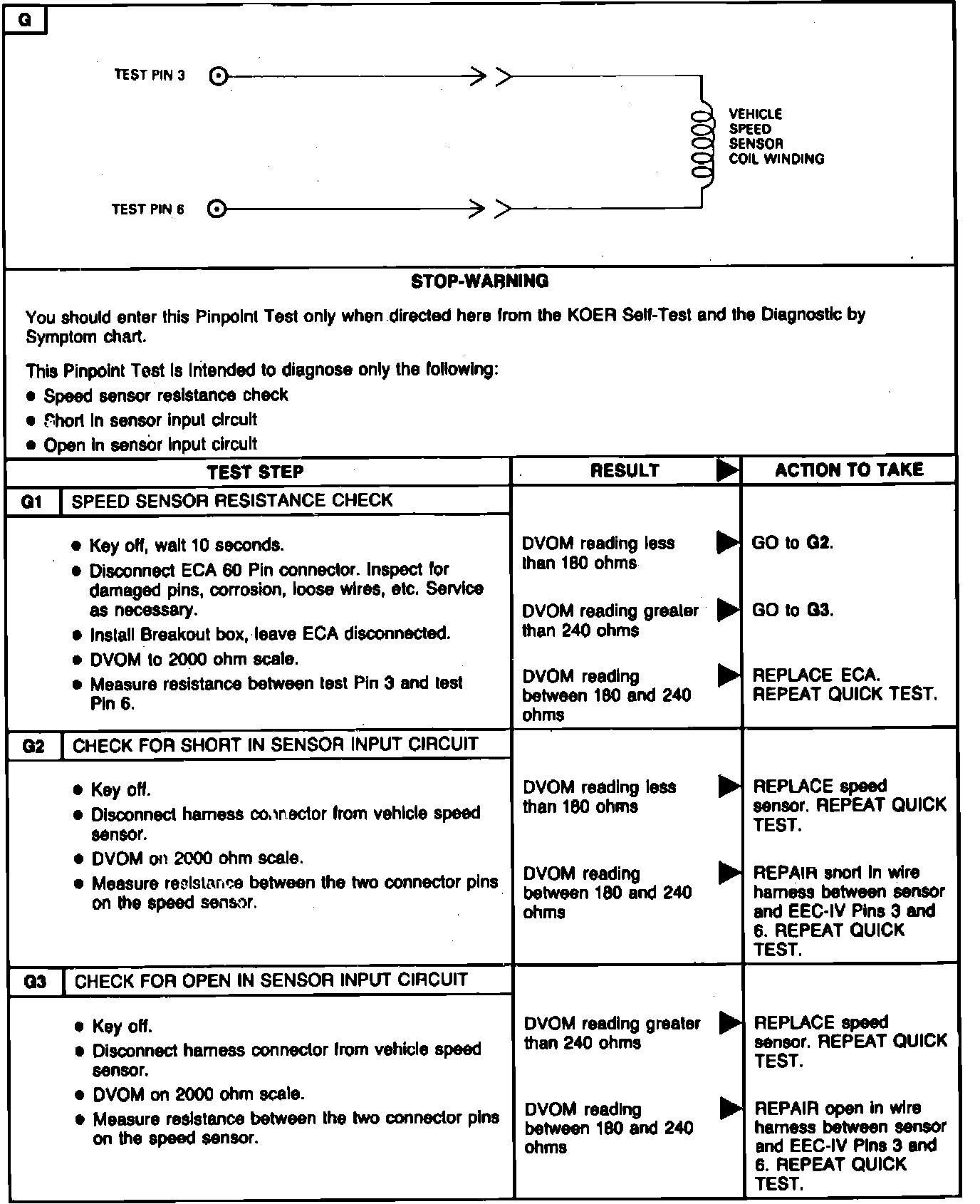

Fig. 26 Speed sensor, Pinpoint Test G:
