Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> B: Brake On/Off >> B1 Thru B3

B1 Thru B3

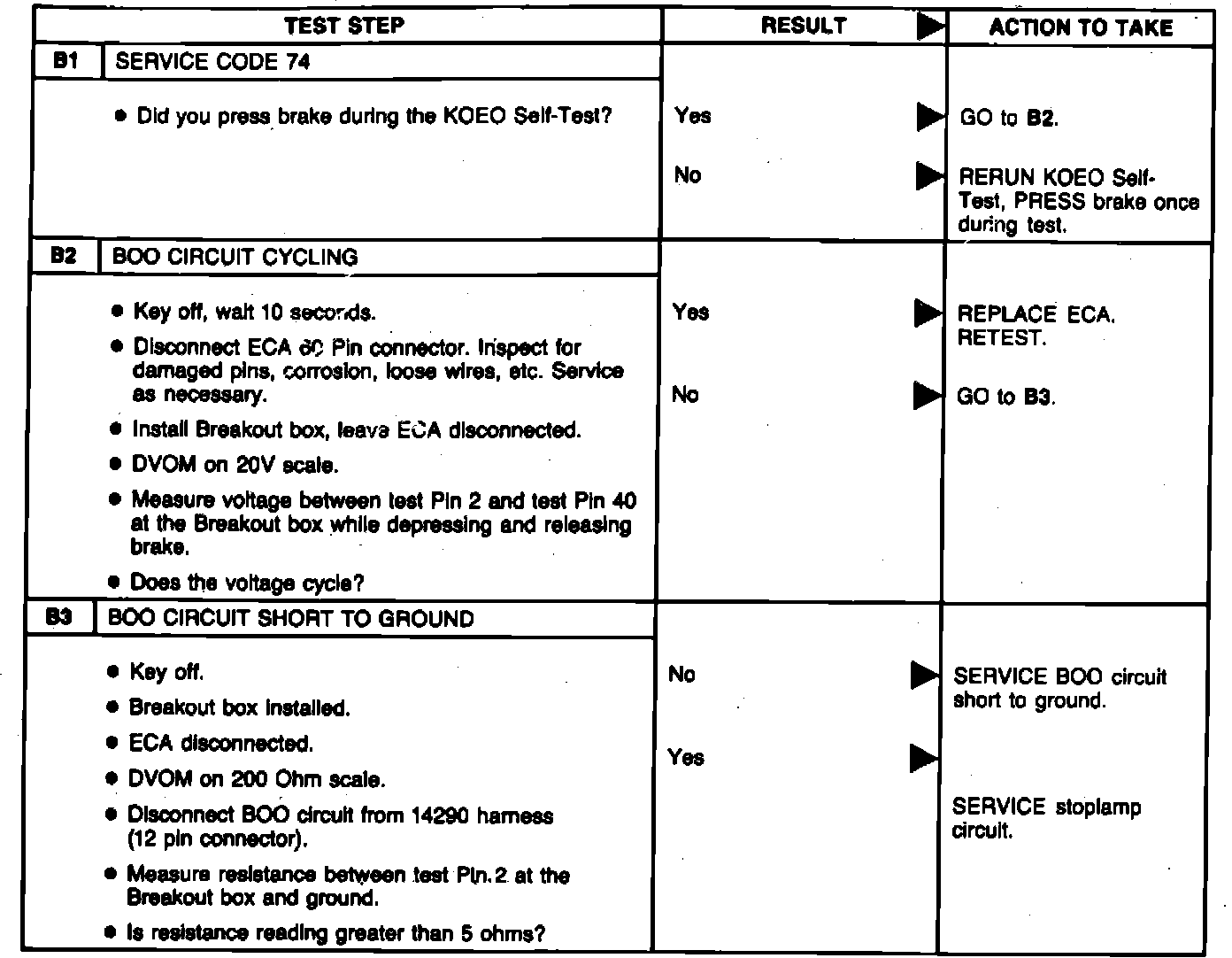

Fig. 21 Brake On/Off (BOO), Pinpoint Test B (Part 2 of 3):
