Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> A: Speed Control Switches >> A3 Thru A6

A3 Thru A6

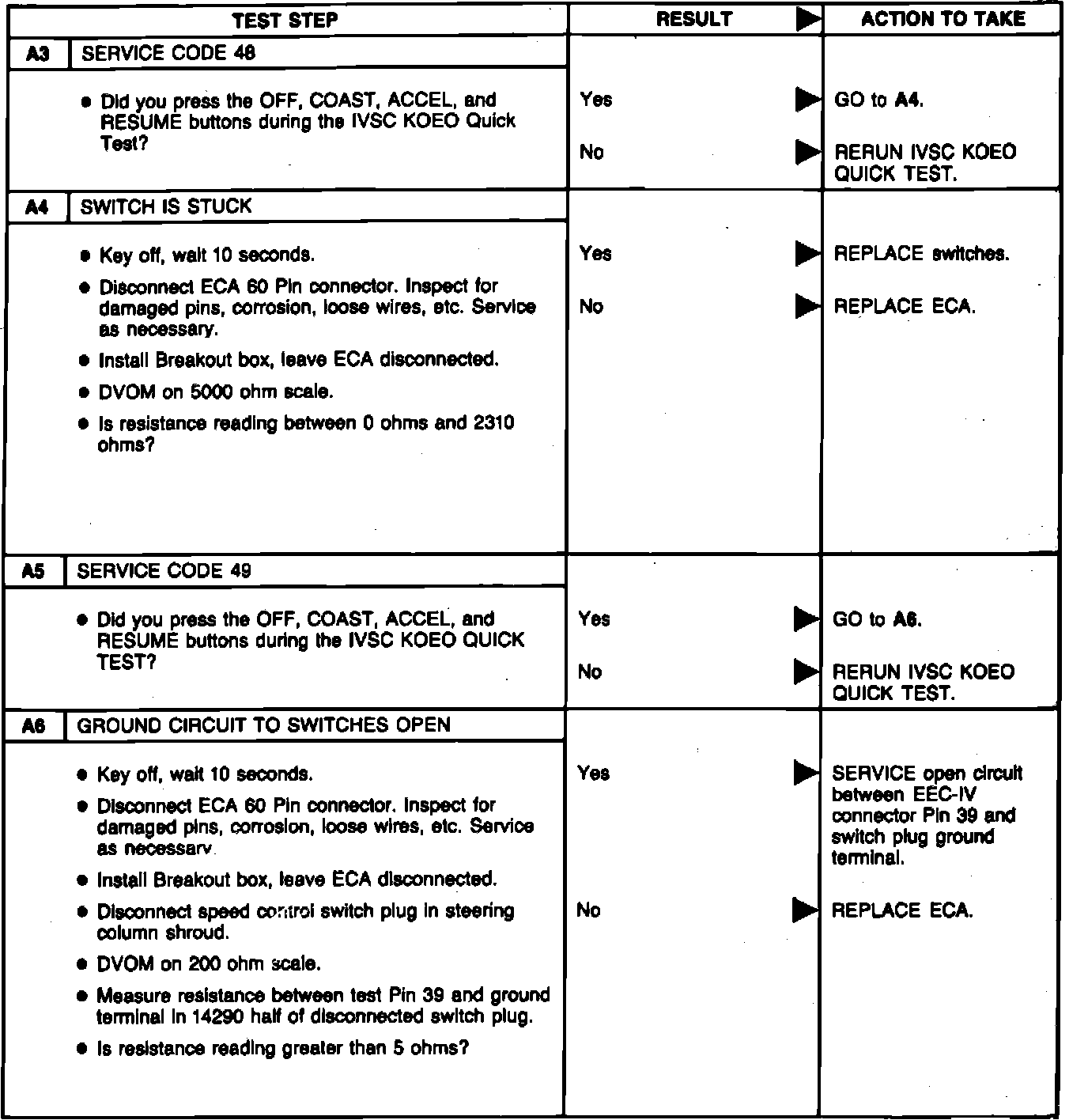

Fig. 20 Speed control switches, Pinpoint Test A (Part 3 of 3):
