Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Keyless Entry Module >> Locations

Keyless Entry Module: Locations

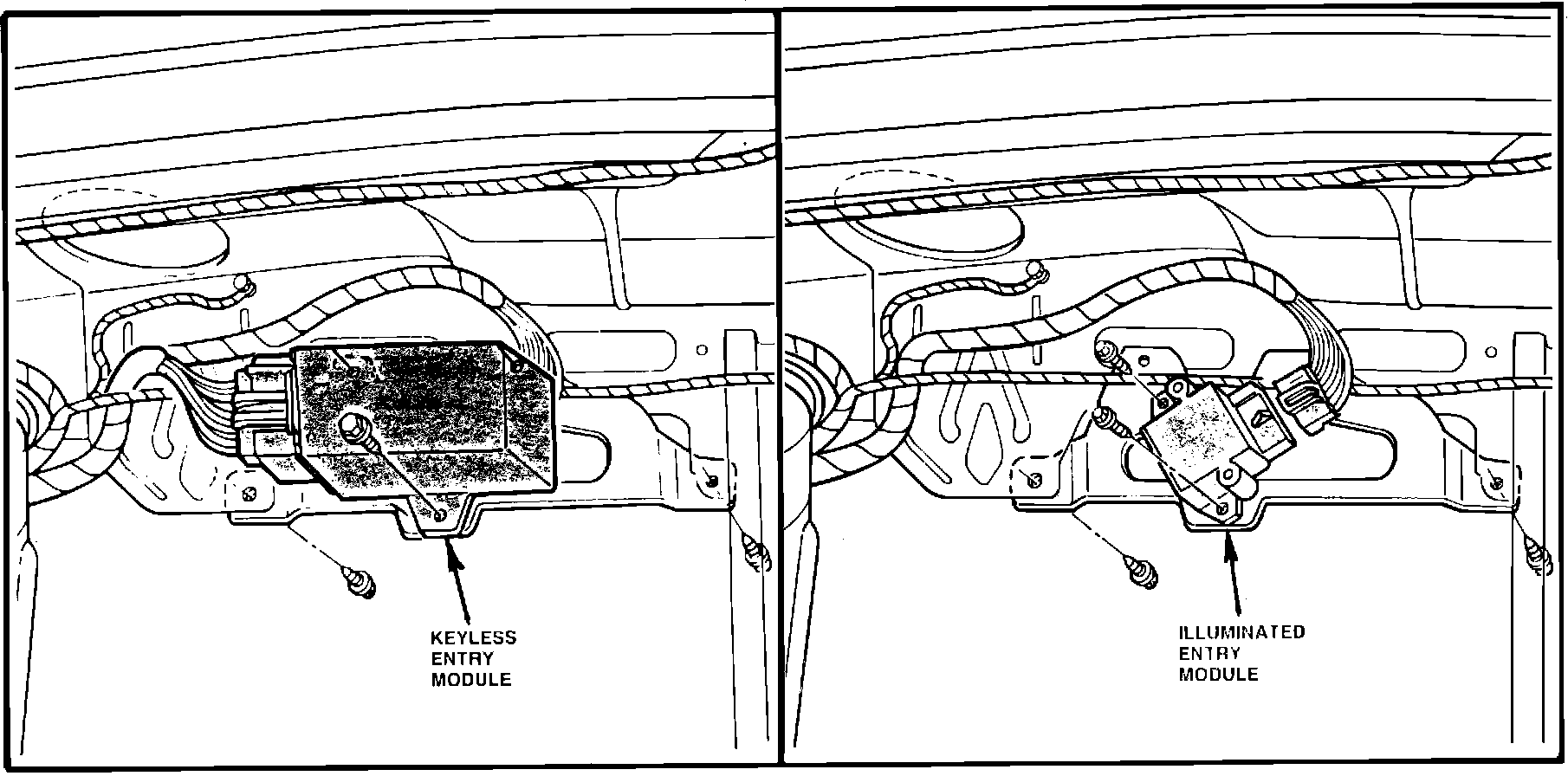

Keyless Entry & Illuminated Entry Modules.:




Drivers Front Door, Above Handle

Applicable to: 1986 Sedan Models
