Vehicle - Emission Control Decals Incorrect
87ford17
ENGINE/EMISSION FACTS BOOK SUMMARY - Article No.
REVISED PAGES - 1.9L AND 2.5L ENGINES 87-16-14
FORD: 1986 ESCORT, EXP, TAURUS
LINCOLN-MERCURY: 1986 LYNX, SABLE
ISSUE: The Vehicle Emission Control Information (VECI) decals on pages 10 and 42 of the 1986 Car and Truck Engine/Emission Facts Book Summary are incorrect.
ACTION: The corrected information for pages 10 and 42 of the 1986 Car and Truck Engine/Emission Facts Book Summary are on pages 25 and 27 of this TSB.
The VECI decal identification numbers can be found in the lower left hand corner of the VECI decal. The correct VECI decals should be combined with the calibrations as follows:
Engine Calibration Decal
1.9L 6-08A-R28 E6AE-9C485-APK

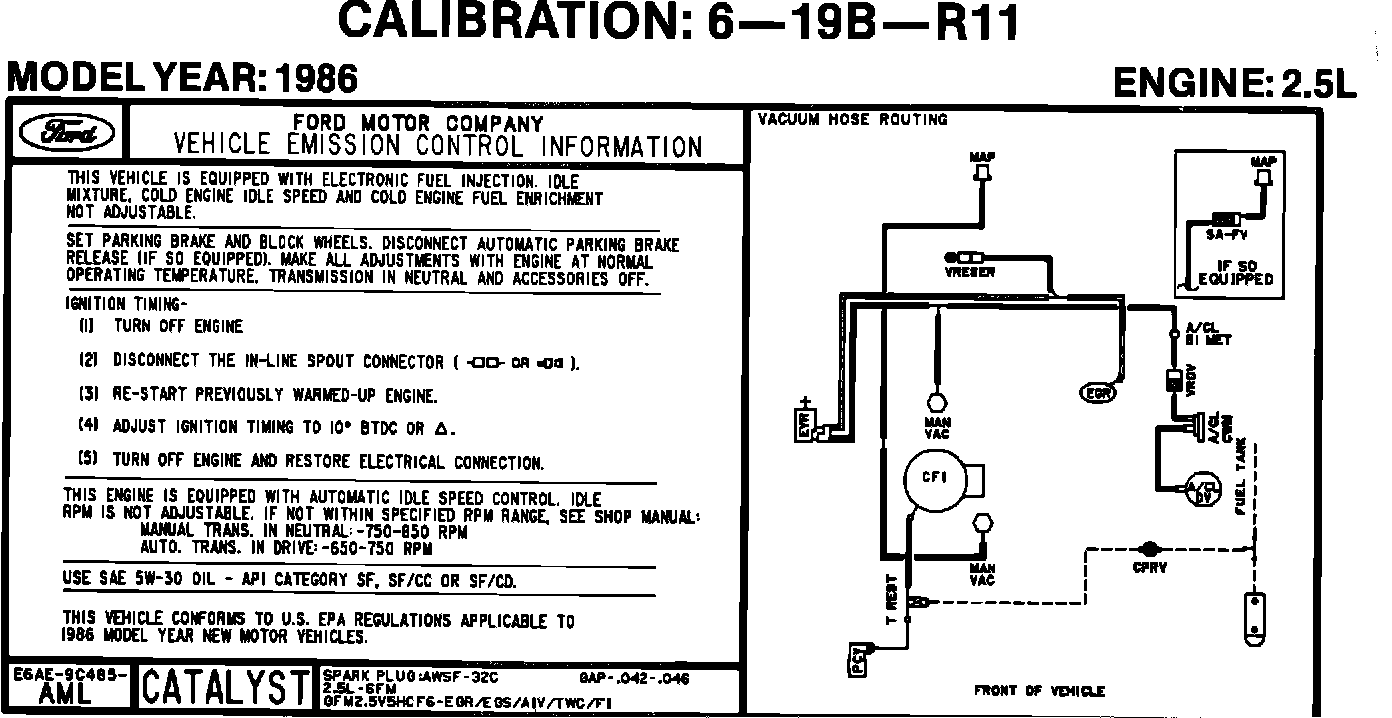

2.5L 6-19B-R11 E6AE-9C485-AML
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
CARBURETOR SPECIFICATIONS
Model: Motorcraft 740
Part Number: E5GE-9510-AEF CHOKE/FUEL ENRICHMENT SYSTEM
Pulldown Setting: 7.0 +/- .5 mm
Bi-Metal Identification: 47R-712-5A
Fast Idle Cam Setting: 2.5 +/- .5 mm
De-Choke: 3.5 mm Minimum
Choke Cap Index Plate Color: Natural FUEL INLET SYSTEM
Float Setting (Dry): 7.25-7.75 mm
MAIN METERING SYSTEM
Power Valve Timing: None
Main Jet (Primary): 1.10 mm
Main Jet (Secondary): 1.05 mm
DASH POT CLEARANCE: 1.5 +/- .5 mm PROPANE SPECIFICATIONS
Gain RPM 20-70
Reset RPM 40
DISTRIBUTOR SPECIFICATIONS Total Advance @ 2500 RPM Includes Initial Timing
Distributor Part No. E5EE-12127-CB
CALIBRATION SERVICE SPECIFICATIONS
Reference Decal No.: E6AE-9C485-APK
CALIBRATION PARTS LIST
NAME DESCRIPTION PART NUMBER
REGULATOR EGR
ASSY. E4ZZ 9J431-A
VALVE ASSY. EGR Vacuum 4 port
Control D8BZ 9D473-A
VALVE ASSY. EGR Vacuum 2 port
Control D3TZ 9D473-A
VALVE ASSY. EGR E6FZ 9D475-G
CONNECTOR EGR Valve Tube
To Manifold E4FZ 9F485-G
PUMP ASSY. Thermactor-
Without P/S E1FZ 9A486-J
PUMP ASSY. Thermactor-
Without P/S E1FZ 9A486-L
CALIBRATION PARTS LIST CONT'D
NAME DESCRIPTION PART NUMBER
PUMP ASSY. Thermactor-
With P/S E1FZ 9A486-K
VALVE ASSY. Thermactor upstream
Check-Hose Nipple One End - Male Fitting and Vacuum Nipple
One End E3FZ 9A487-G
VALVE ASSY. Thermactor down-
Check-Hose stream
Nipple Both Ends E3TZ 9A487-A
REGULATOR Emission Vacuum
Control E4FZ 9F490-A
VALVE ASSY. Thermactor Control E6FZ 9F491-A
CARBURETOR
ASSY. E6FZ 9510-AEF
SENSOR ASSY. Carburetor Air
Cleaner Air Temperature
Control D4FZ 9E607-A
MOTOR ASSY. Carburetor Air
Cleaner Vacuum E1FZ 9D612-B
VALVE ASSY. Air Cleaner
Temperature
Sensor Override D5DZ 9E862-A
VALVE ASSY. Air Cleaner
Temperature
Sensor Override D7ZZ 9ES62-A
COMPENSATOR Carburetor Altitude
ASSY. E6FZ 9A950-B
VALVE ASSY. Distributor black/
Vacuum Control gold E3AZ 12A091-B
VALVE ASSY. Distributor black/
Vacuum Control brown E3AZ 12A091-D
DISTRIBUTOR
ASSY. E6FZ 12127-C
VALVE ASSY. Distributor Retard pink/
Control white E3AZ 12A208-E
RESTRICTOR Distributor Vacuum yellow
ASSY. D9ZZ 12A225-A
FUEL CHARGING ASSEMBLY SPECIFICATIONS
Model: Ford CFI
Part Number: E6AE-9G973-DA CFI (Central Fuel Injection)
Fuel lnjector Identification: E53E-9F593-AB THROTTLE POSITION SENSOR
IDENTIFICATION E63F-9B989-DA
IDLE SPEED CONTROL: E6DF-9N825-AA CALIBRATION SERVICE SPECIFICATIONS
Reference Decal No.: E6AE-9C485-AML
CALIBRATION PARTS LIST
NAME DESCRIPTION PART NUMBER
SENSOR Exhaust Gas
Recirculation
Valve E5AZ 96428-A
RESERVOIR EGR Vacuum
ASSY. D6TZ 9E453-A
CONTROL ASSY. EGR Vacuum
Regulator E63Z 9J459-A
SENSOR ASSY. Exhaust Gas
Oxygen E43Z 9F472-A
SENSOR ASSY. Exhaust Gas
Oxygen E53Z 9F472-B
SENSOR ASSY. Exhaust Gas
Oxygen E6DZ 9F472-B
SENSOR ASSY. Exhaust Gas
Oxygen E63Z 9F472-A
SENSOR ASSY. Manifold Absolute
Pressure E43Z 9F479-B
CALIBRATION PARTS LIST CONT'D
NAME DESCRIPTION PART NUMBER
SENSOR ASSY. Manifold Absolute
Pressure E6FZ 9F479-A
VALVE ASSY. EGR Pressure
External E53Z 9F483-A
VALVE ASSY. Thermactor Check E6AZ 9A487-B
SENSOR ASSY. Carburetor Air
Cleaner Air Temperature
Control D7FZ 9E607-B
MOTOR ASSY. Carburetor Air
Cleaner Vacuum E6AZ 9D612-C
VALVE ASSY. Air Cleaner
Temperature
Sensor Override D5DZ 9ES62-A
CHARGING CFI
ASSY.-FUEL E6DZ 9C973-B
DISTRIBUTOR
ASSY. E63Z 12127-B
VALVE ASSY. Distributor Retard brown/
Control white E3AZ 12A208-D
SENSOR ASSY. Engine Electronic
Control Coolant
Temperature E1AZ 12A648-A
PROCESSOR AND EEC IV
CALIBRATOR
ASSY. E6DZ 12A650-FB
SENSOR ASSY. Air Charge
Temperature E1AZ 12A697-A
