1986
>>
Sable L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
>>
System Diagram
>>
Cooling Fan Motor Relays (Integrated Control Module)
>>
Manual Transaxle
Manual Transaxle

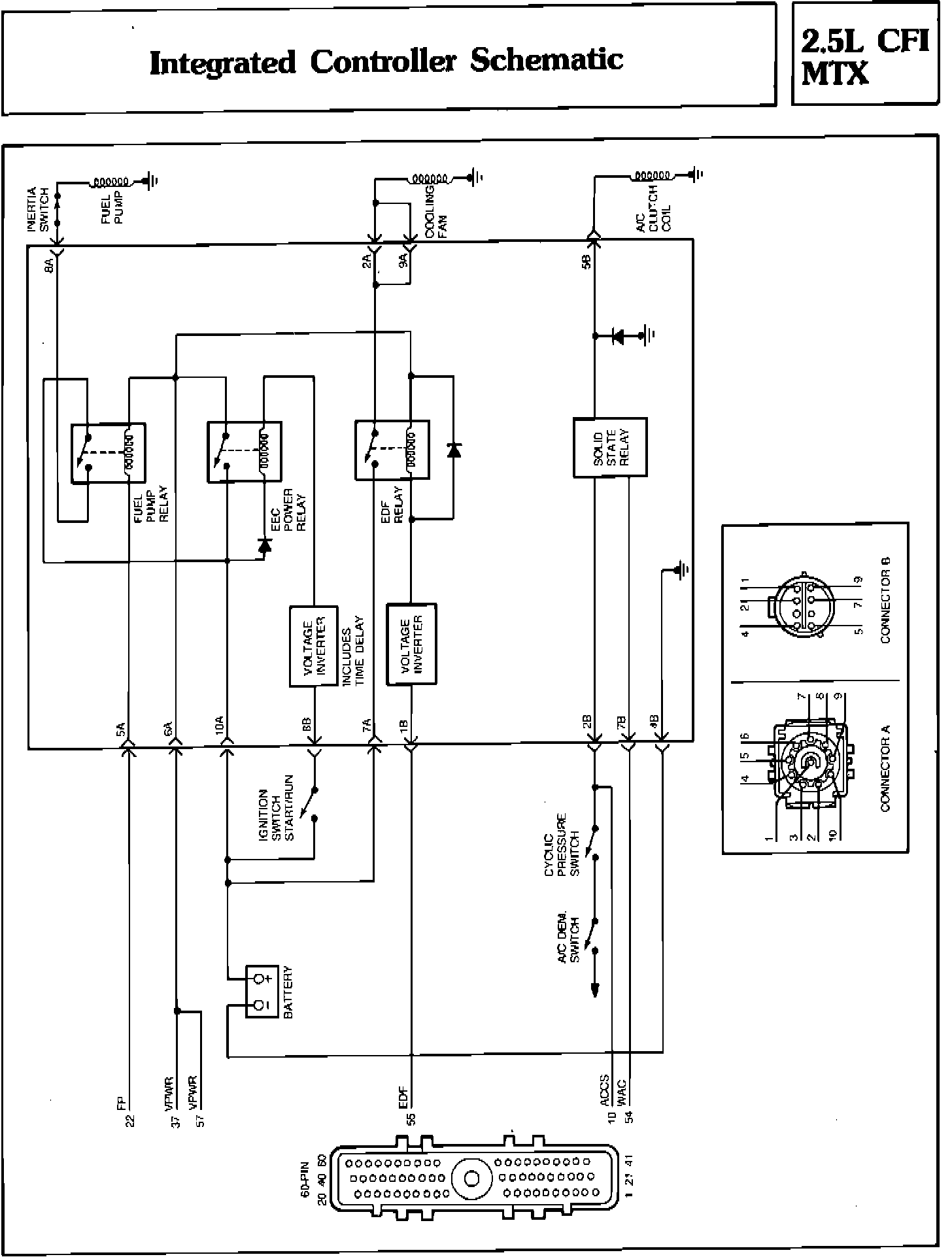

Wiring Schematic - Integrated Controller W/CFI & MTX:

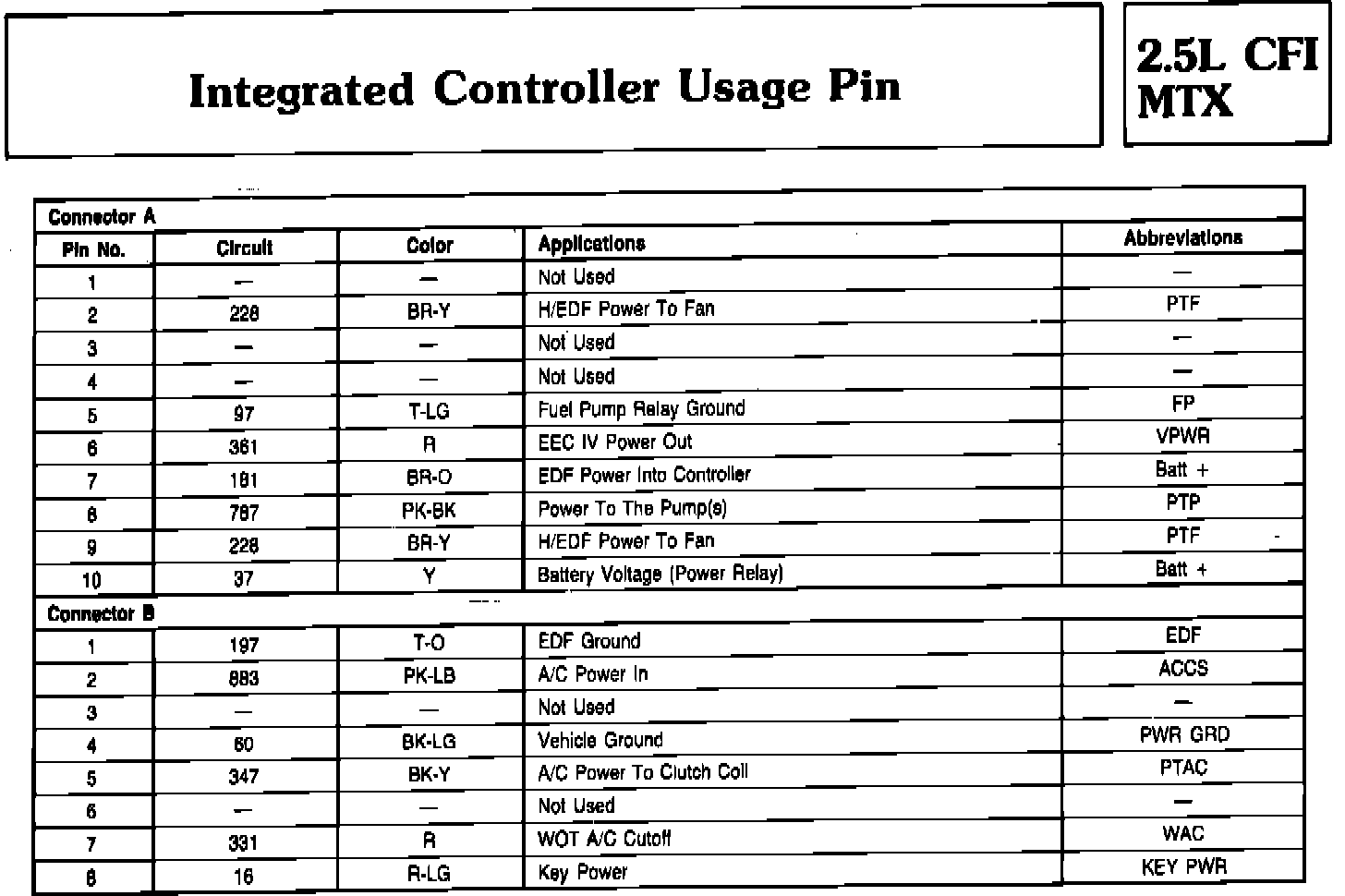

Pin Usage - Integrated Controller W/CFI & MTX:
