Test 9, Power Feed to Relay Points Check

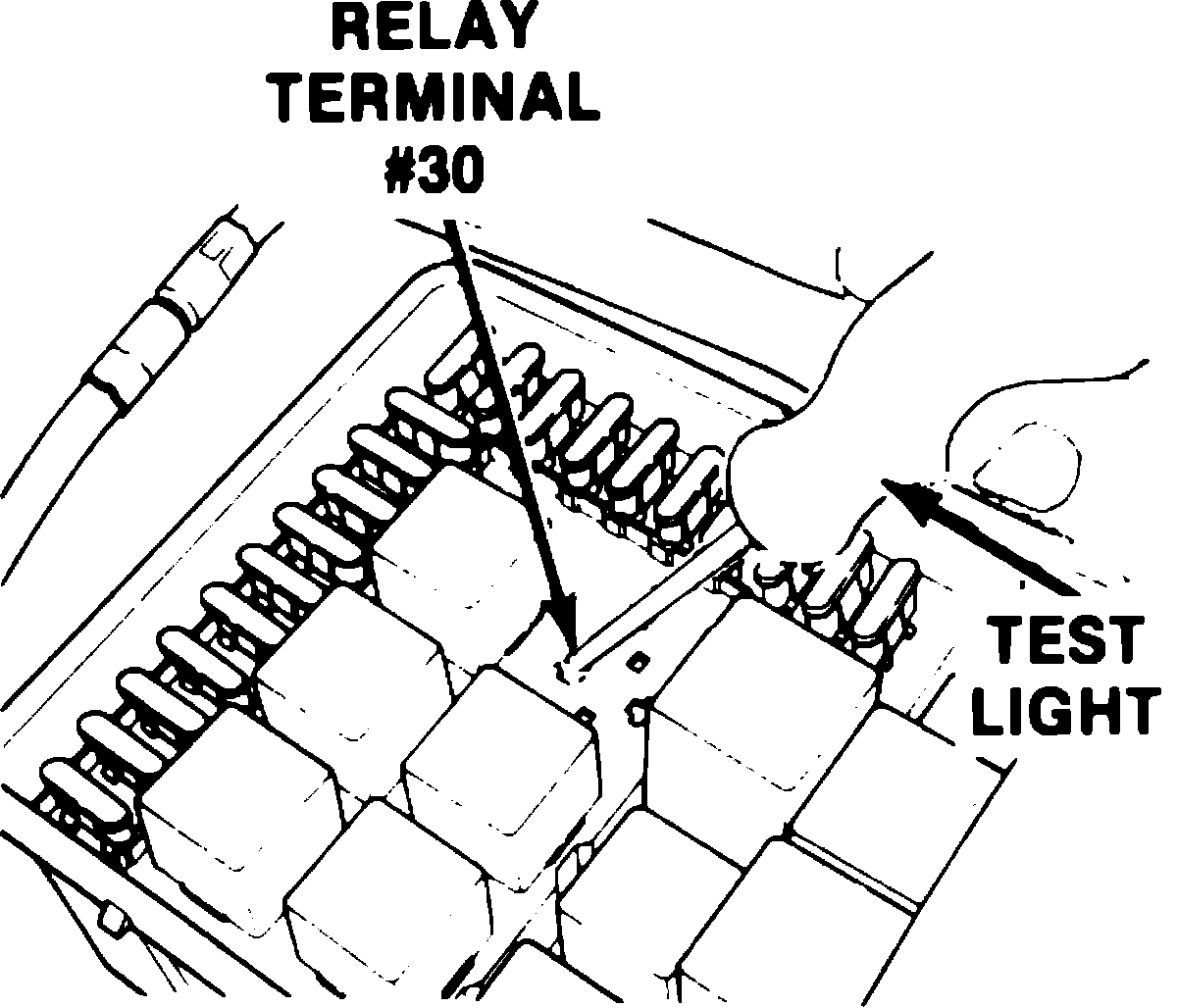

Fig. 9 Relay terminal 30 location:

1. Remove fuel pump relay from circuit protection panel and connect test light from ground to relay terminal 30 in panel, Fig. 9.
2. If light illuminates, proceed to TEST 10.
3. If light does not illuminate, repair open in circuit, then repeat TEST 1 to verify fuel pump operation.
