Test 10, Power Feed to Relay Coil Check

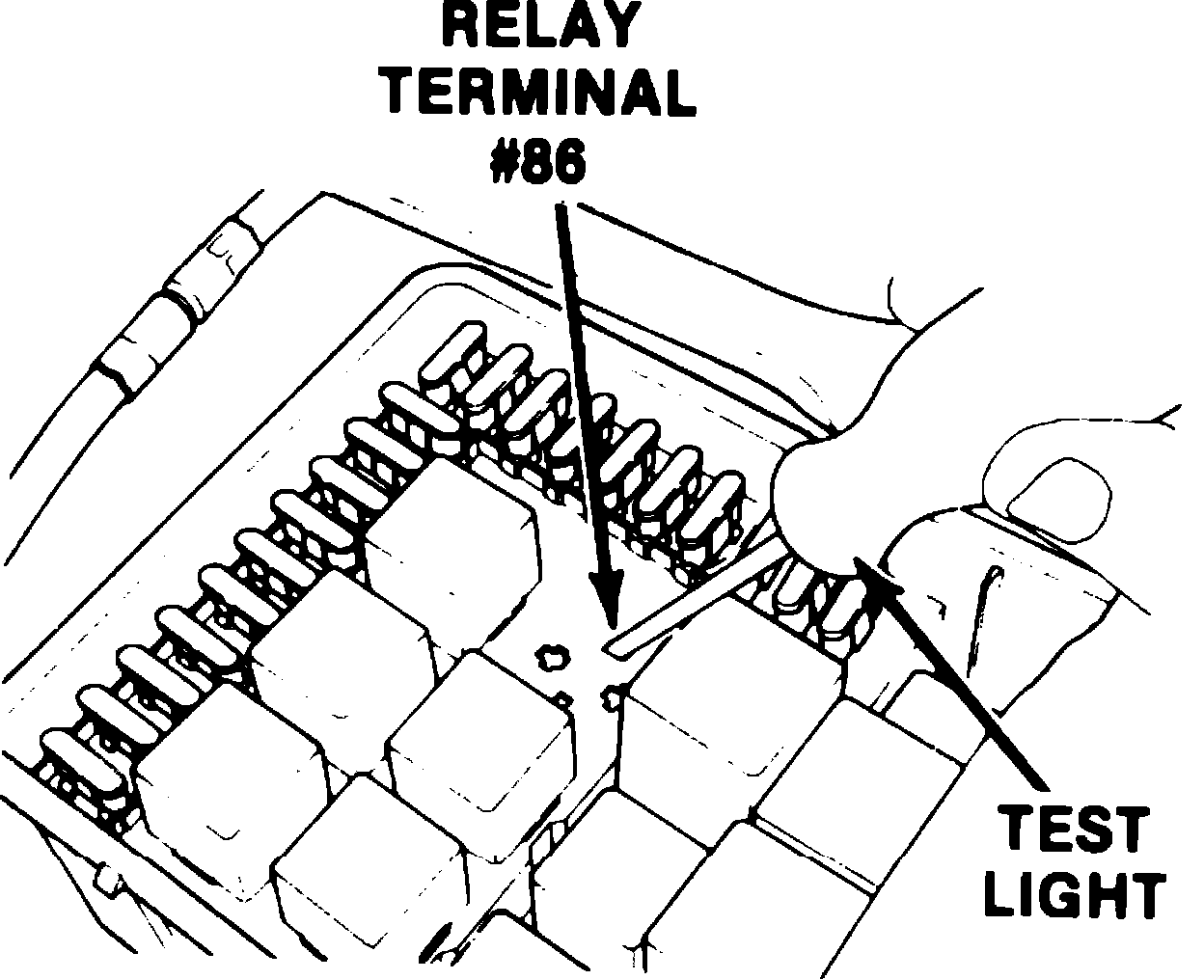

Fig. 10 Relay terminal 86 location:

1. Connect test light from ground to terminal 86, Fig. 10, and turn ignition switch to RUN position.
2. If test light illuminates, proceed to TEST 11.
3. If test light does not illuminate, repair open in circuit, then repeat TEST 1 to verify operation of fuel pumps.
