Home >> Mercury >> 1986 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> A - No Start Test >> A21 - A22

A21 - A22

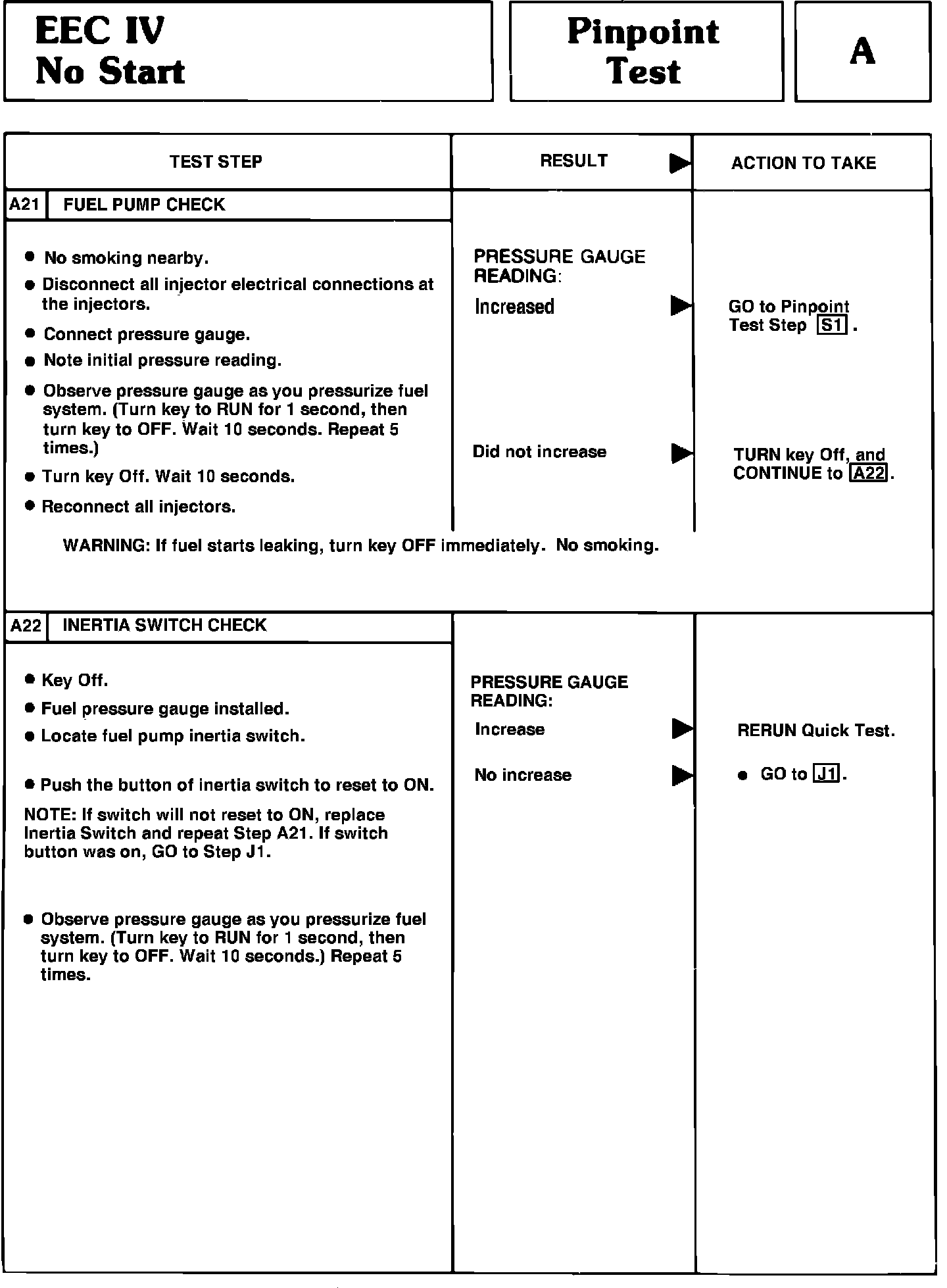

Pinpoint Test A21 - A22. No Start:
