Home >> Mercury >> 1986 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

2oWarning Indicator (Auxiliary Indicators):

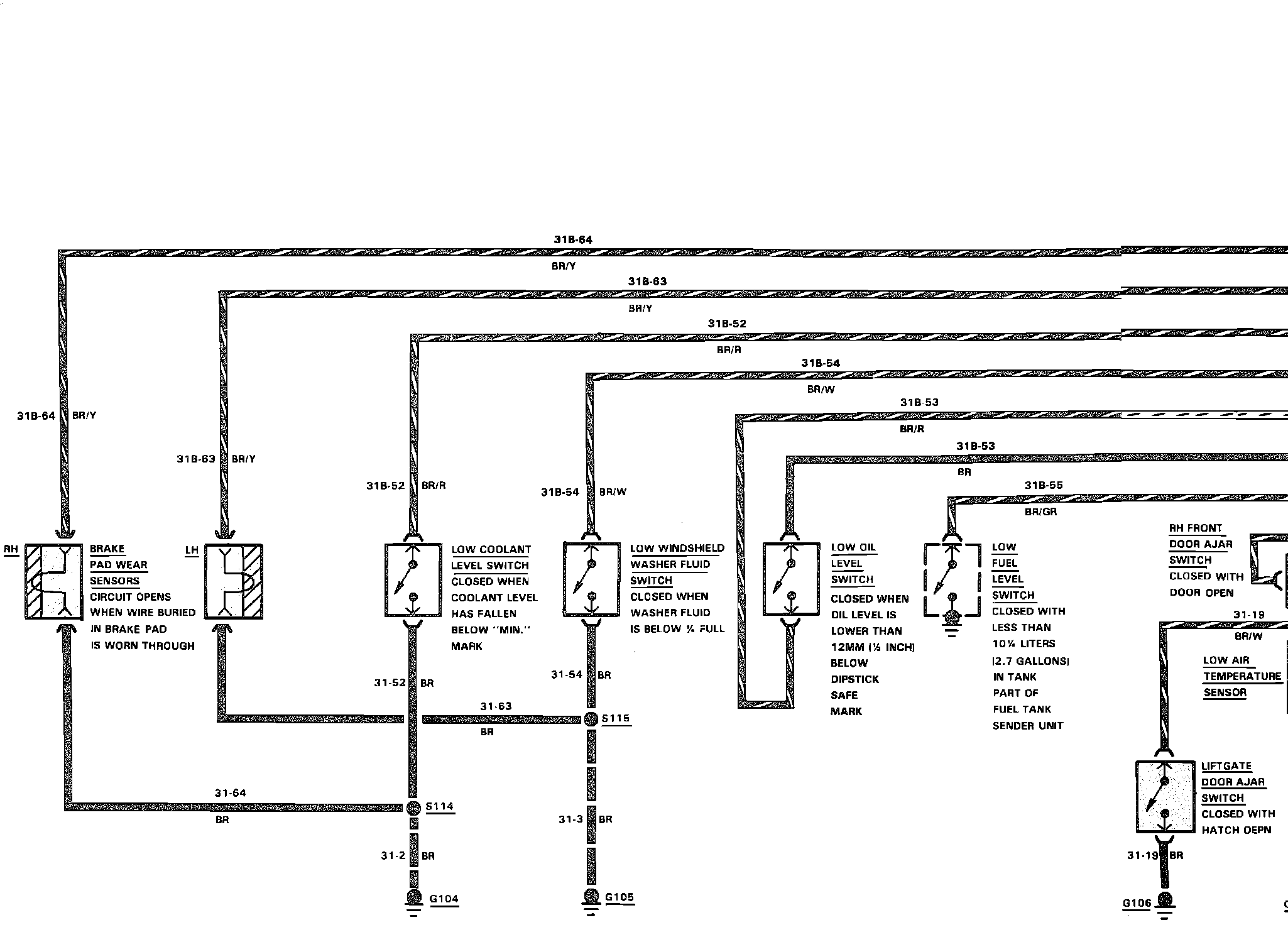

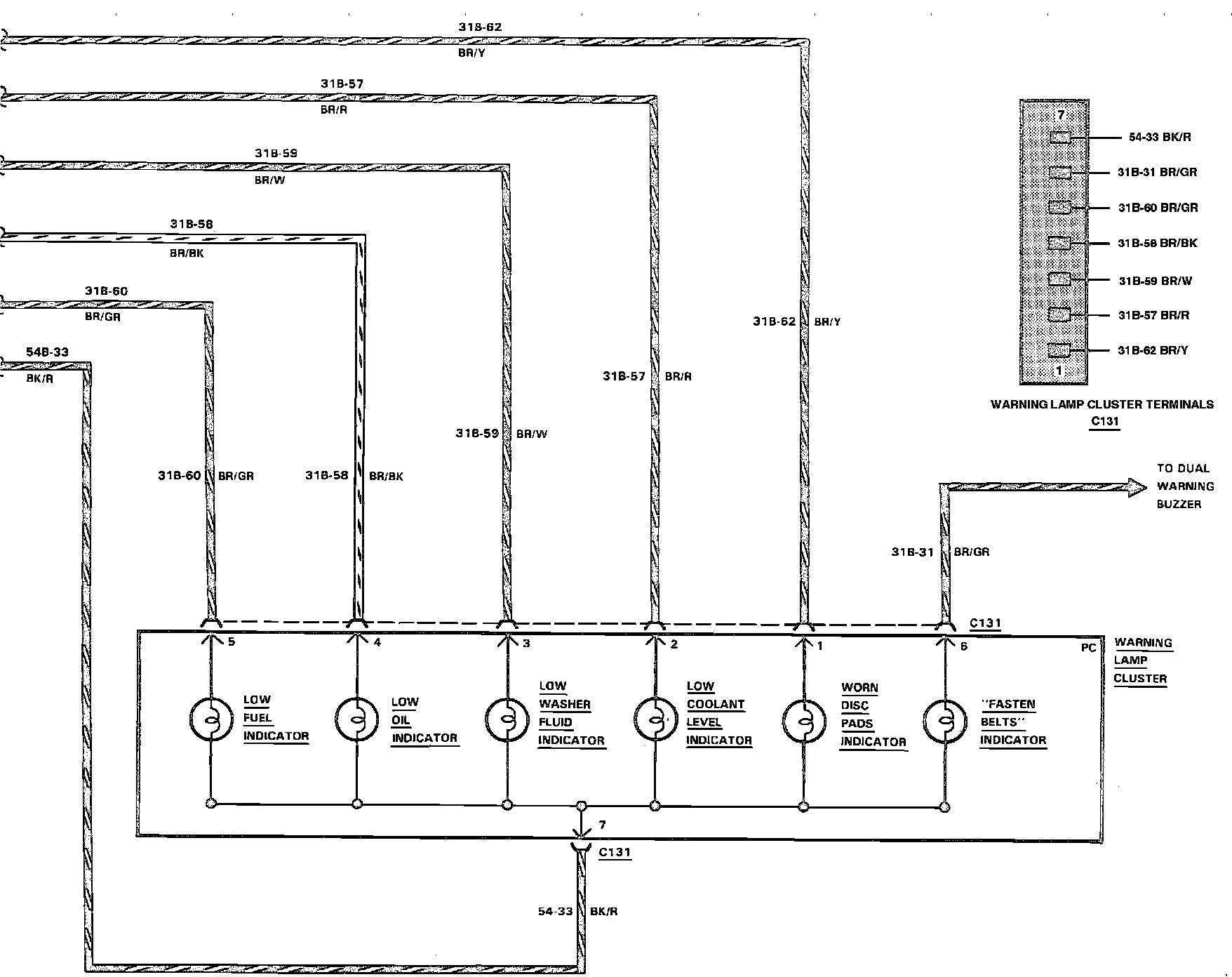

Warning Indicator (Auxiliary Indicators):
