Home >> Mercury >> 1986 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Block Diagrams

Block Diagrams

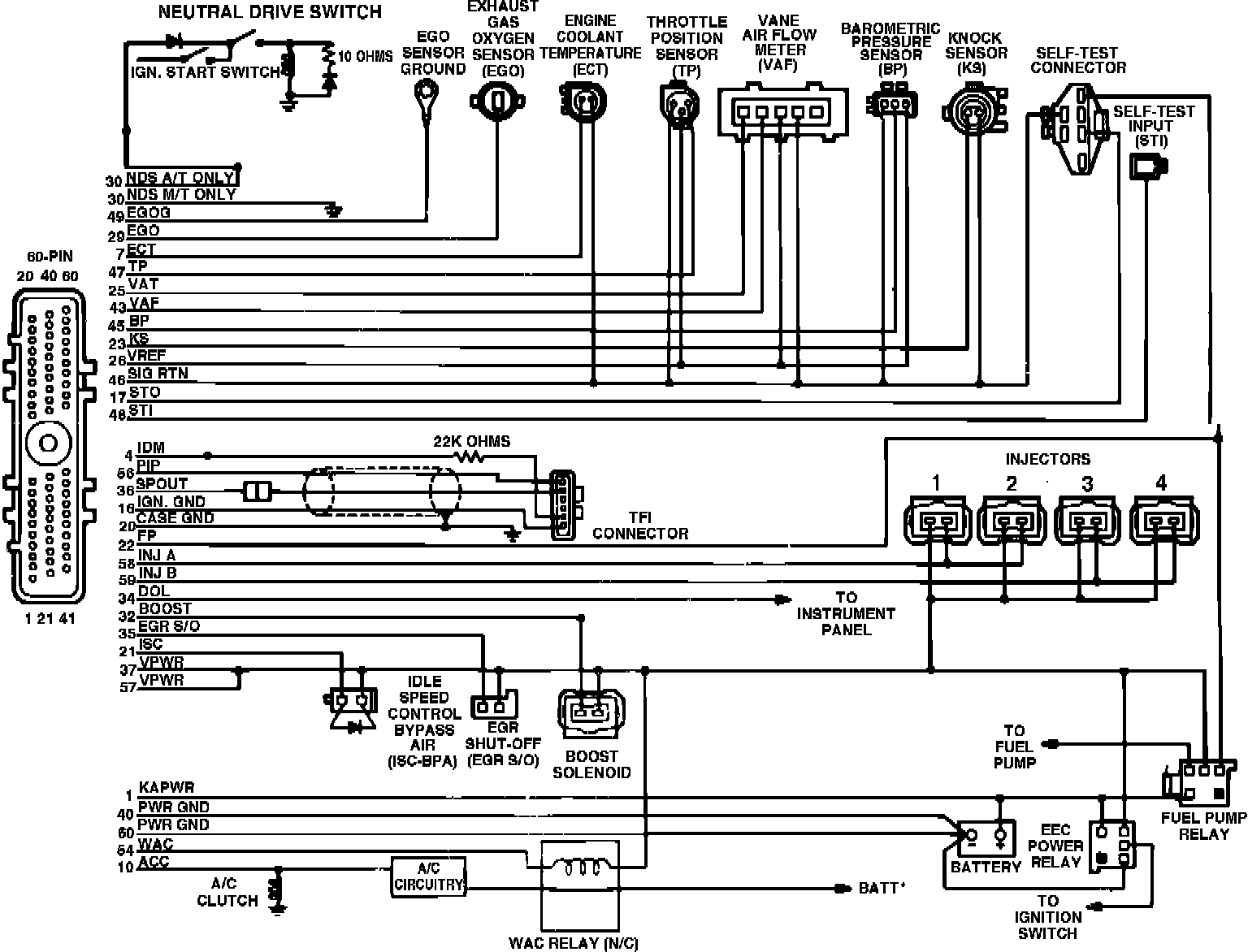

Fig. 24 EEC-IV system wiring circuit. XR4Ti:
