Home >> Mercury >> 1986 >> Merkur Xr4ti L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors >> System Diagram >> Heated Mirrors

Heated Mirrors

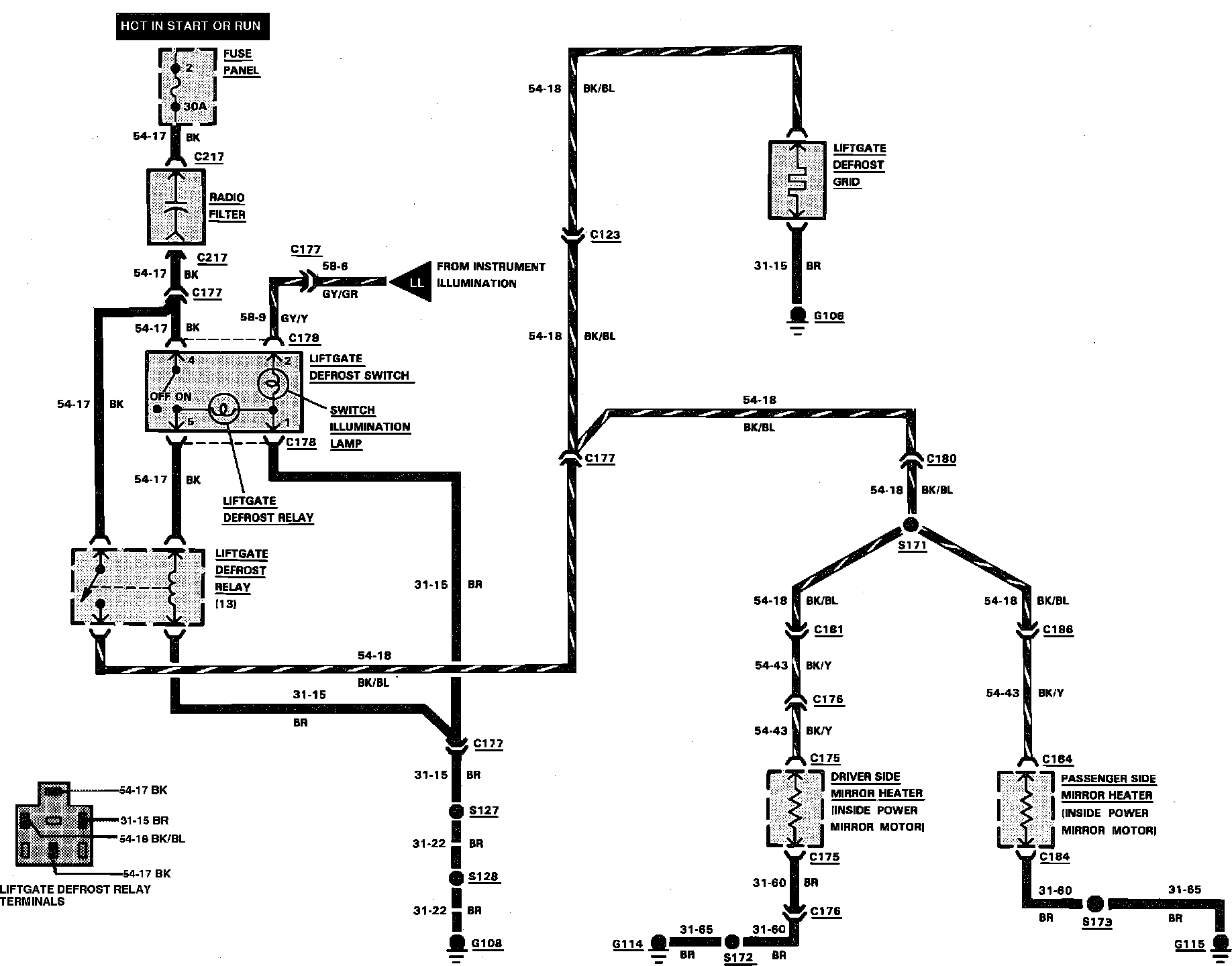

Heated Mirror & Liftgate Defroster:
