Fuse 18 W/Optional Indicators

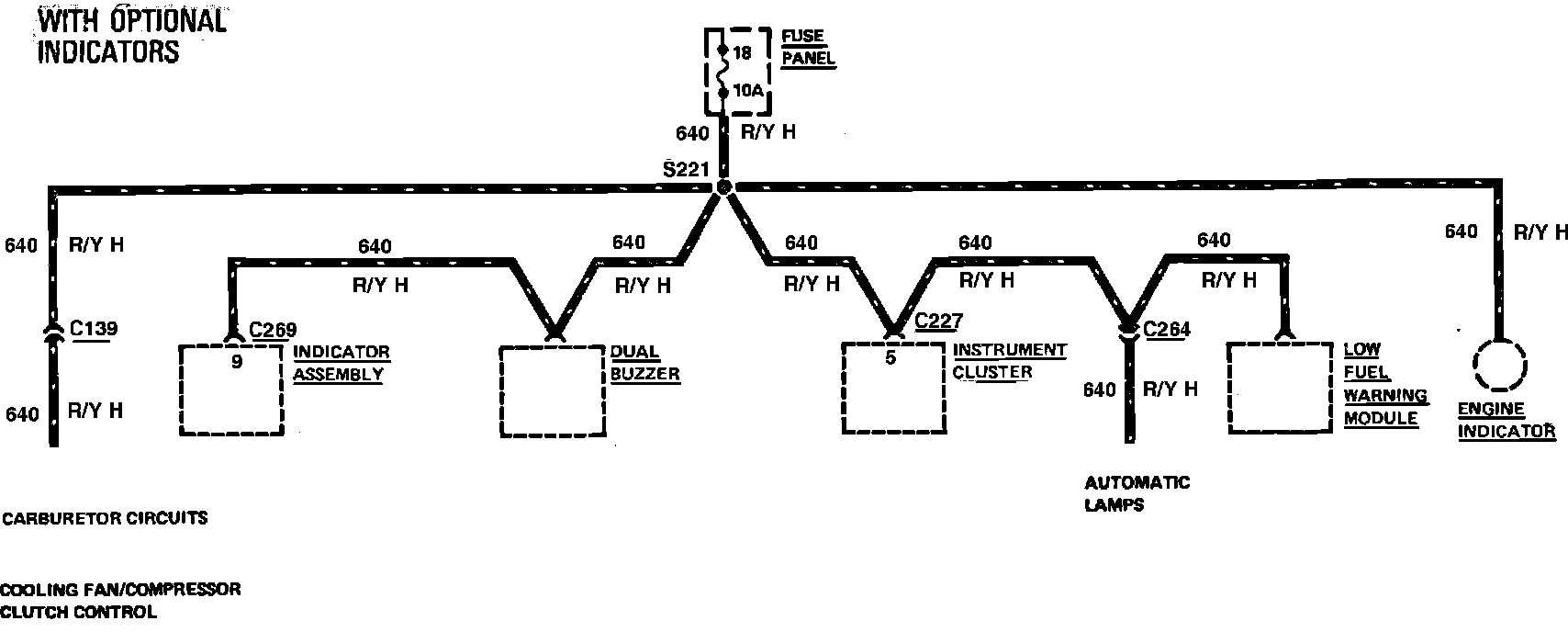

Fig. 6 Fuse 18 Power Distribution Detail Wiring Circuit. LTD & Marquis W/Optional Indicators:
