Home >> Mercury >> 1986 >> Marquis L4-140 2.3L VIN A 1-bbl >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Instrument Panel Ground With Optional Indicators

Instrument Panel Ground With Optional Indicators

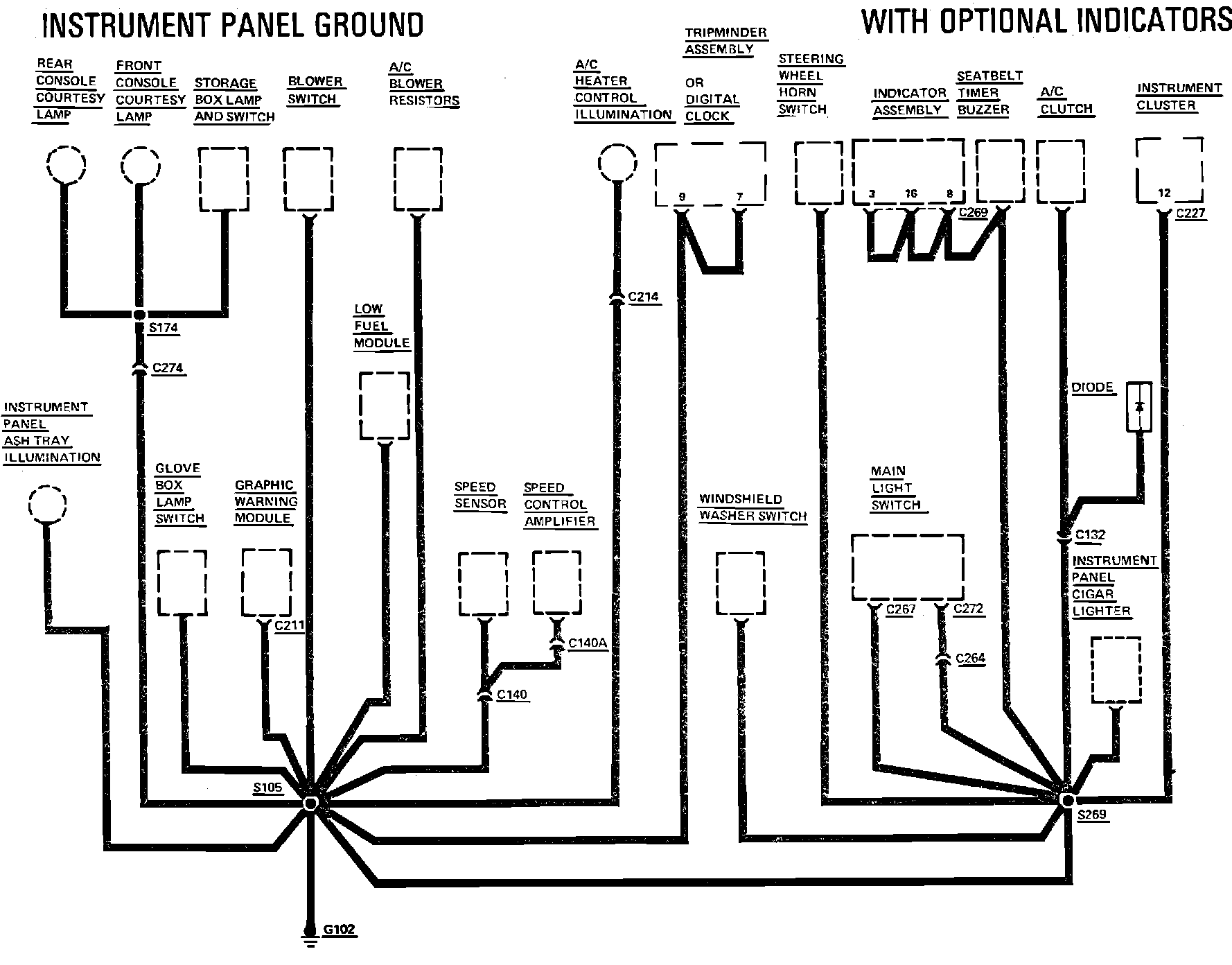

Fig. 17 Ground Distribuiton Wiring Circuit (Part 4 of 6). LTD & Marquis:
