With Intermittent Wipers

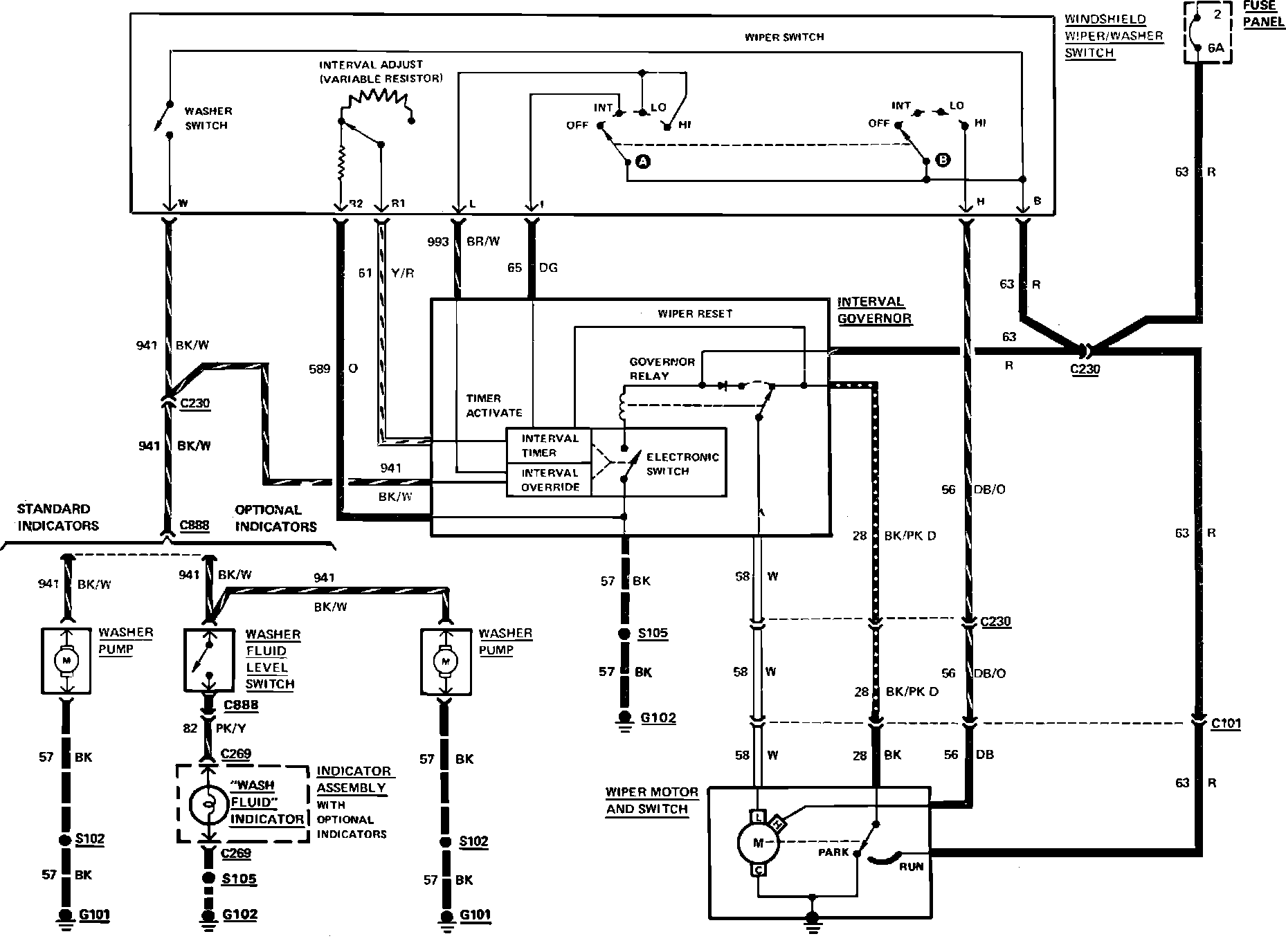

Fig. 39 Windshield Wiper/Washer Wiring Circuit. LTD & Marquis W/Intermittent Wipers:
