Choke Pull-off: Description and Operation

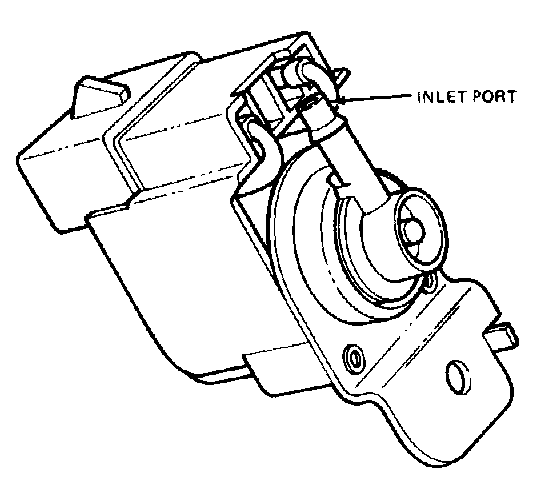

The one-port normally open valve assembly is designed with an atmospheric vent.

The one vacuum port is connected to the atmospheric vent when the solenoid is de-energized. When the solenoid is energized, the atmospheric vent is closed.

This valve assembly is used in the choke pulldown system.
