Fuse 18 W/Standard Indicators

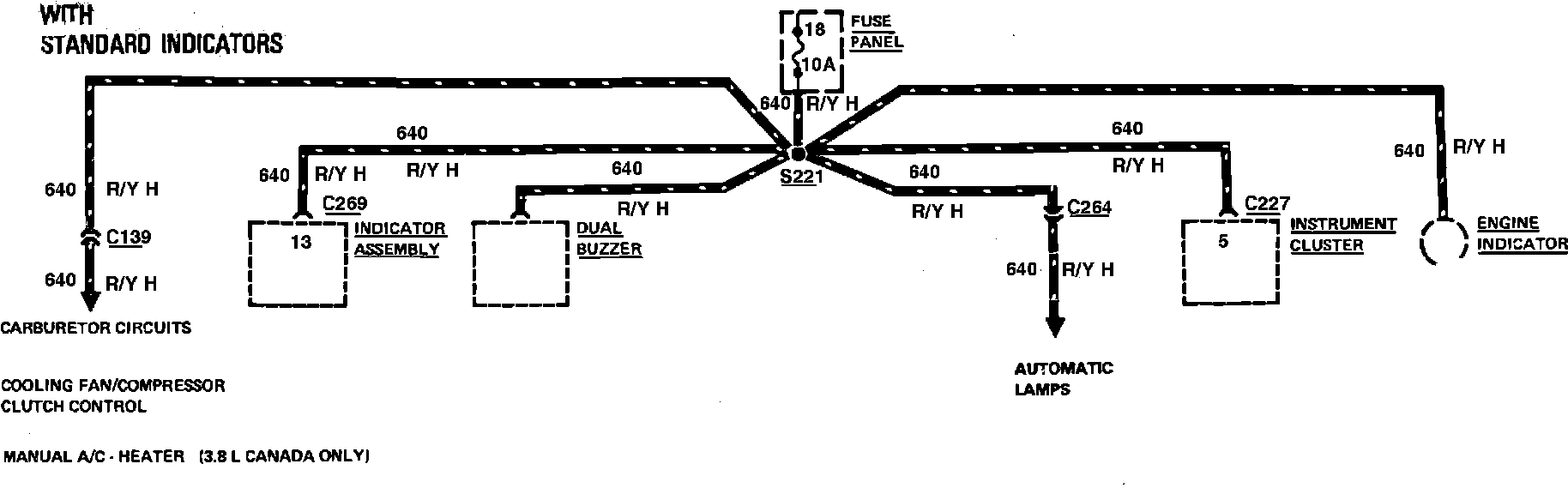

Fig. 5 Fuse 18 Power Distribution Detail Wiring Circuit. LTD & Marquis W/Standard Indicators:
