Home >> Mercury >> 1986 >> Marquis L4-140 2.3L VIN A 1-bbl >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Exterior Lighting Module >> Diagrams >> Electrical Diagrams >> Part 4 of 5

Part 4 of 5

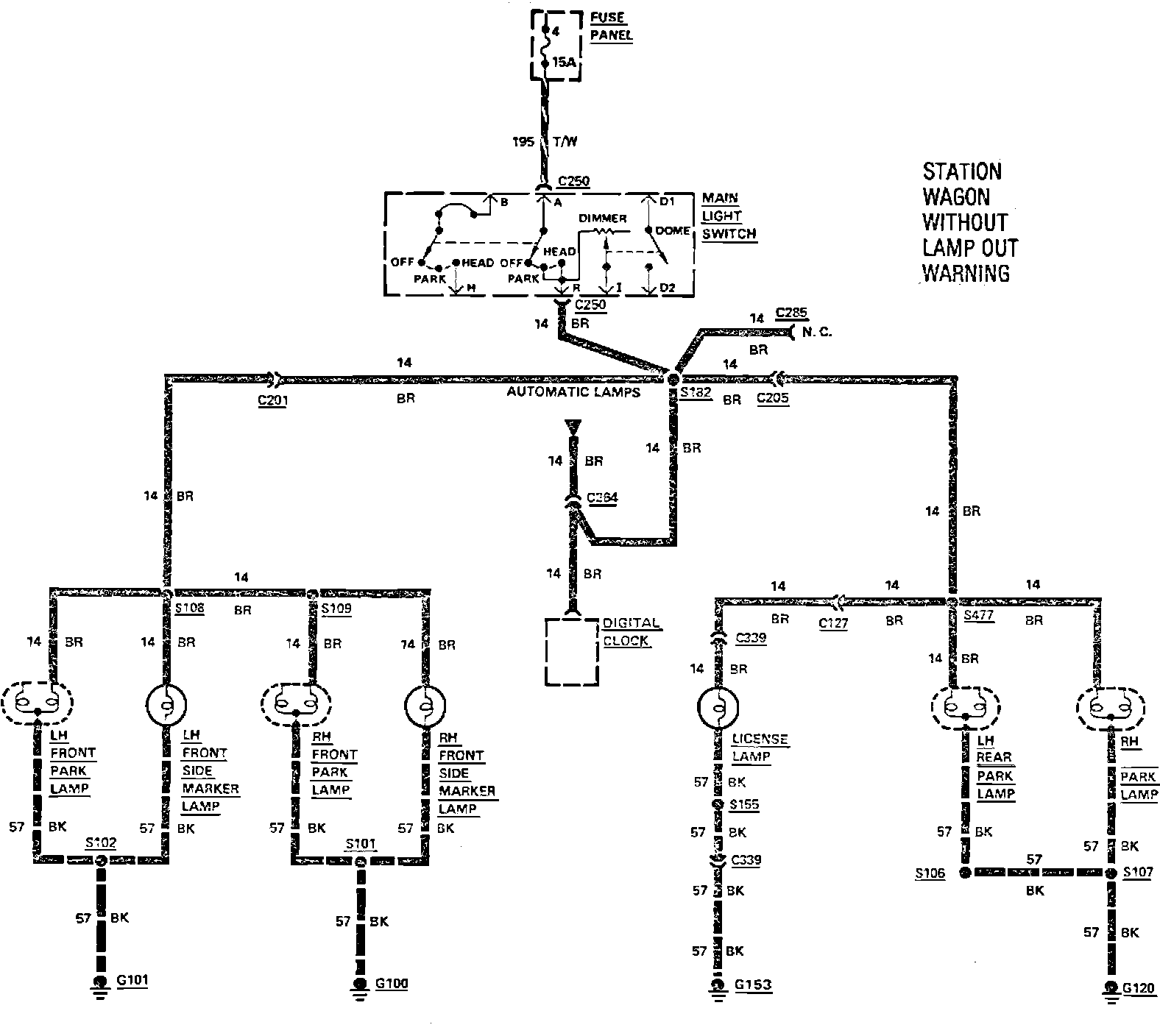

Fig. 16 Exterior Lighting Wiring Circuit (Part 4 of 5). LTD & Marquis:
