Home >> Mercury >> 1986 >> Marquis L4-140 2.3L VIN A 1-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Instrument Panel Illumination >> W/Optional Cluster

W/Optional Cluster

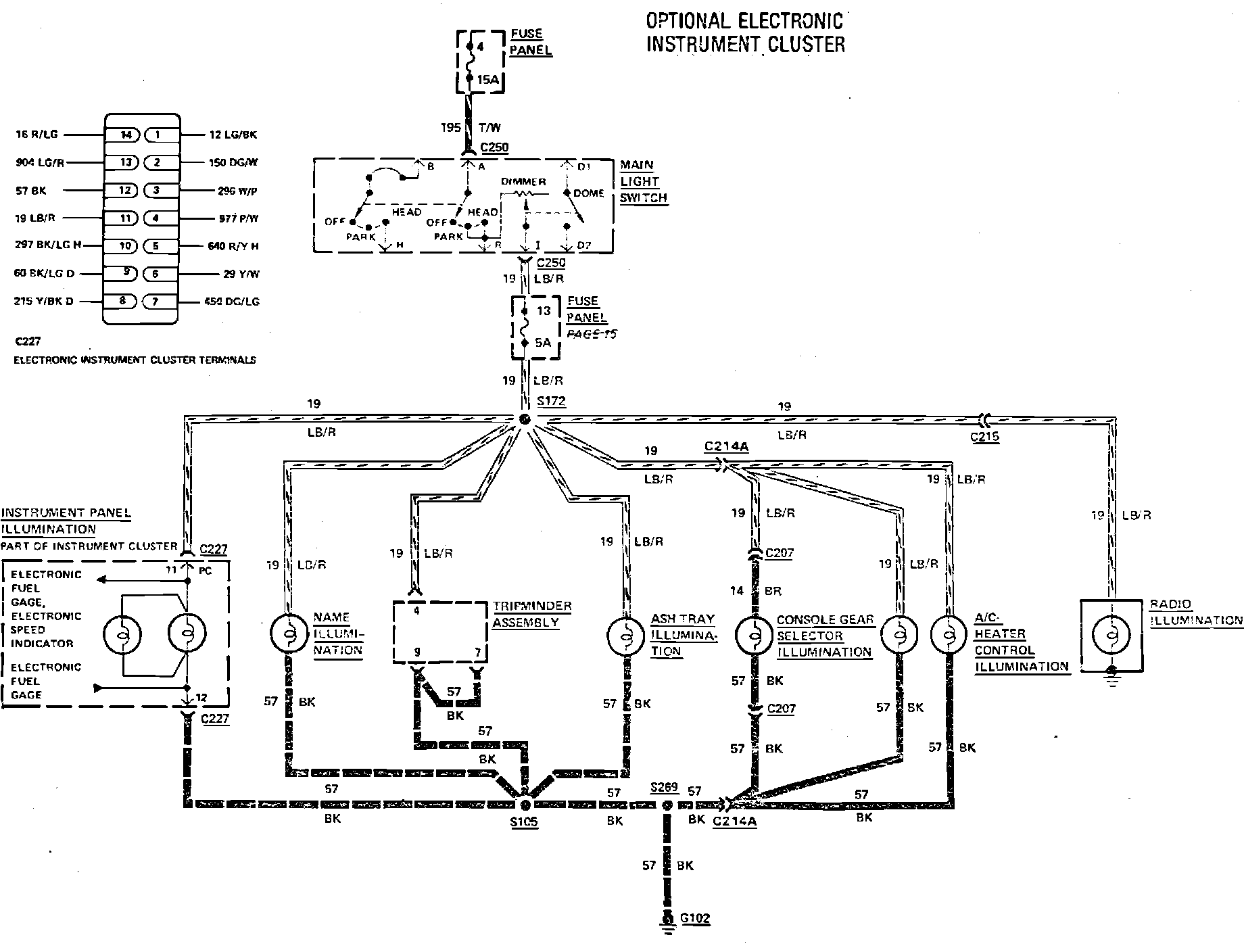

Fig. 25 Instrument Panel Illumination Wiring Circuit. LTD & Marquis W/Optional Cluster:
