Mercury
>>
1986
>>
Marquis L4-140 2.3L VIN A 1-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

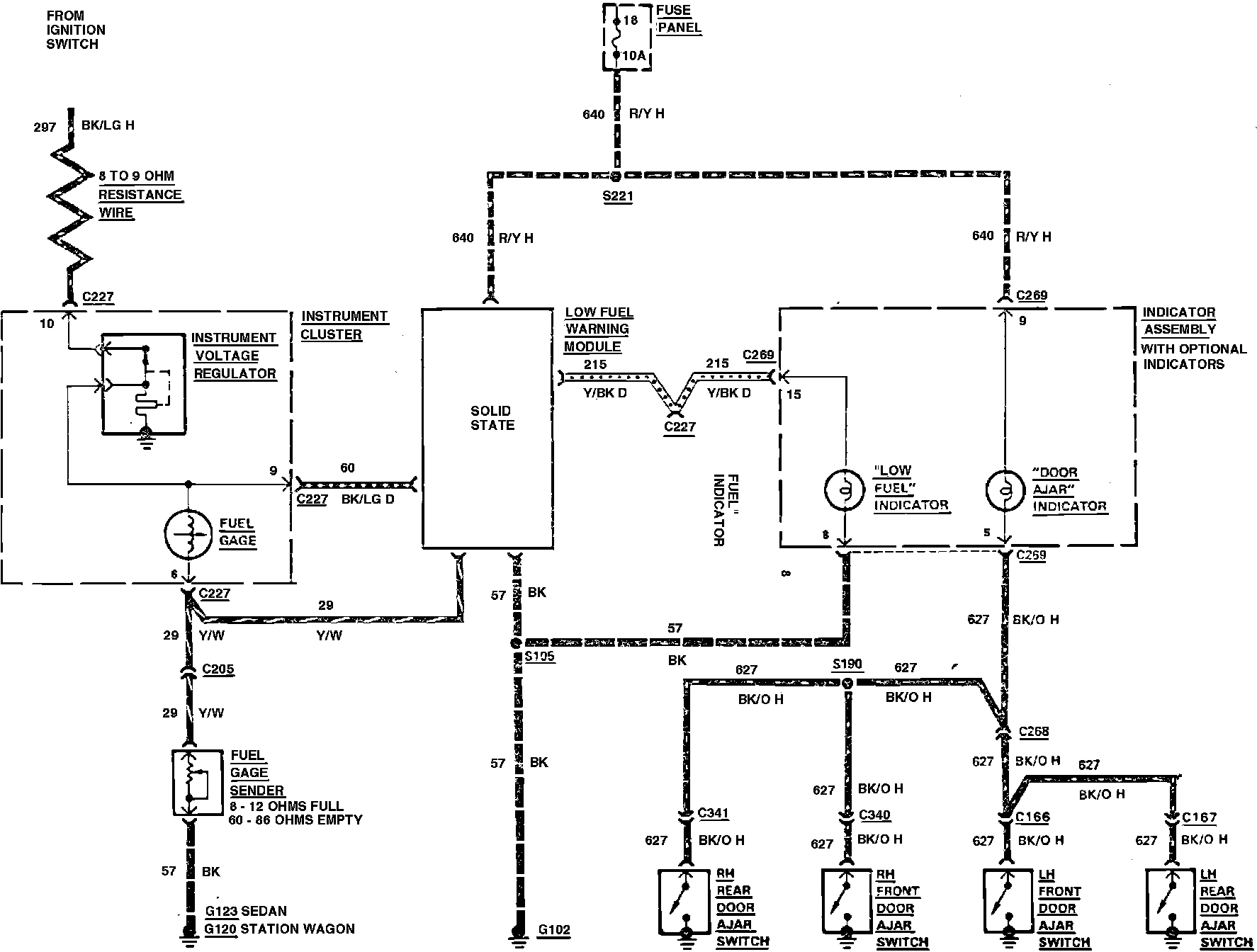

Fig. 13 Door Ajar Indicator, Fuel Gauge & Low Fuel Warning Lamp Wiring Circuit. LTD & Marquis:
