Home >> Mercury >> 1986 >> Marquis L4-140 2.3L VIN A 1-bbl >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Monaural System

Monaural System

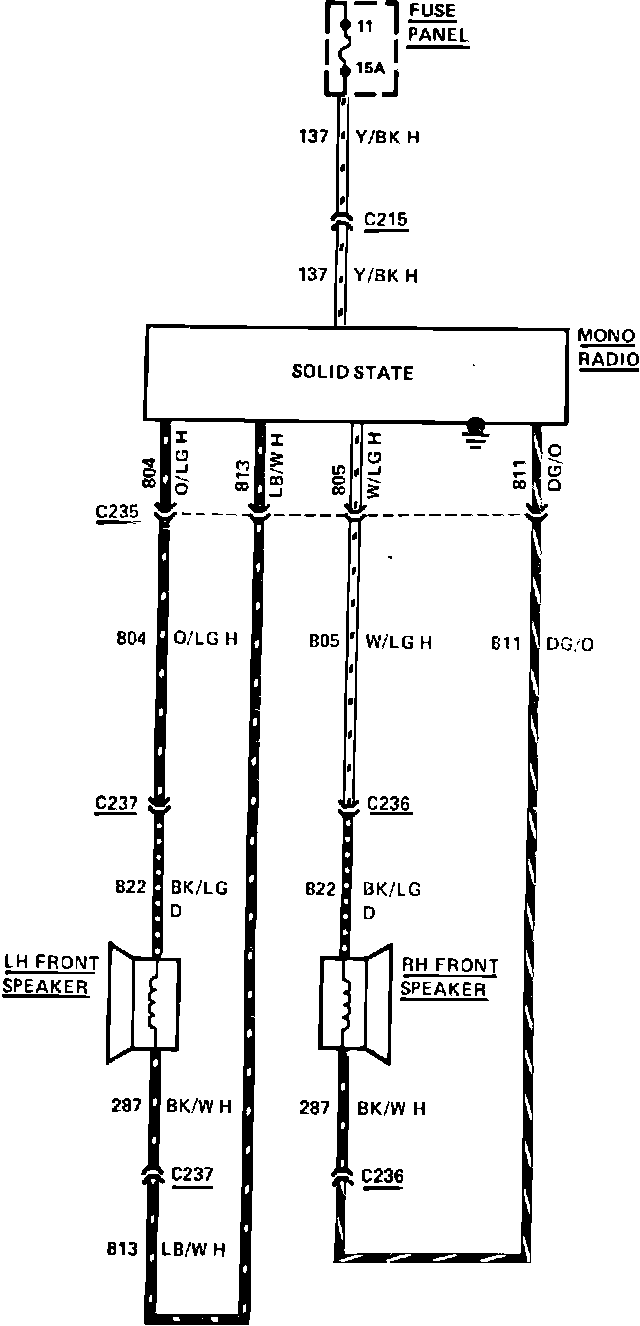

Fig. 48 Radio Wiring Circuit. LTD & Marquis W/Mono Radio:
