Home >> Mercury >> 1986 >> Lynx L4-122 2.0L DSL VIN H FI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> (G104) W/Console

(G104) W/Console

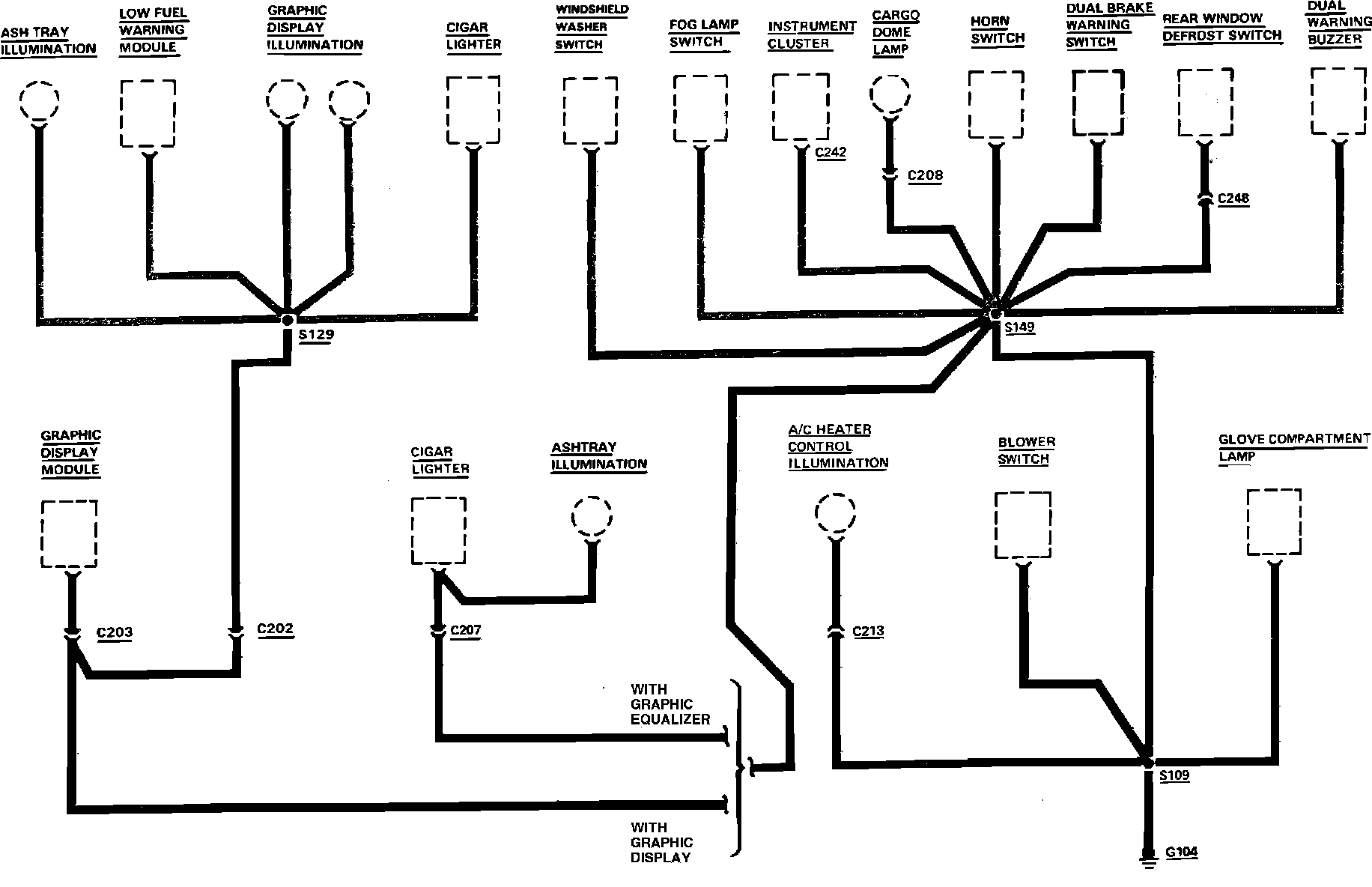

Fig. 31 Ground Distribution Wiring Circuit (G104). W/Console:
