Home >> Mercury >> 1986 >> Lynx L4-122 2.0L DSL VIN H FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> System Diagram

System Diagram

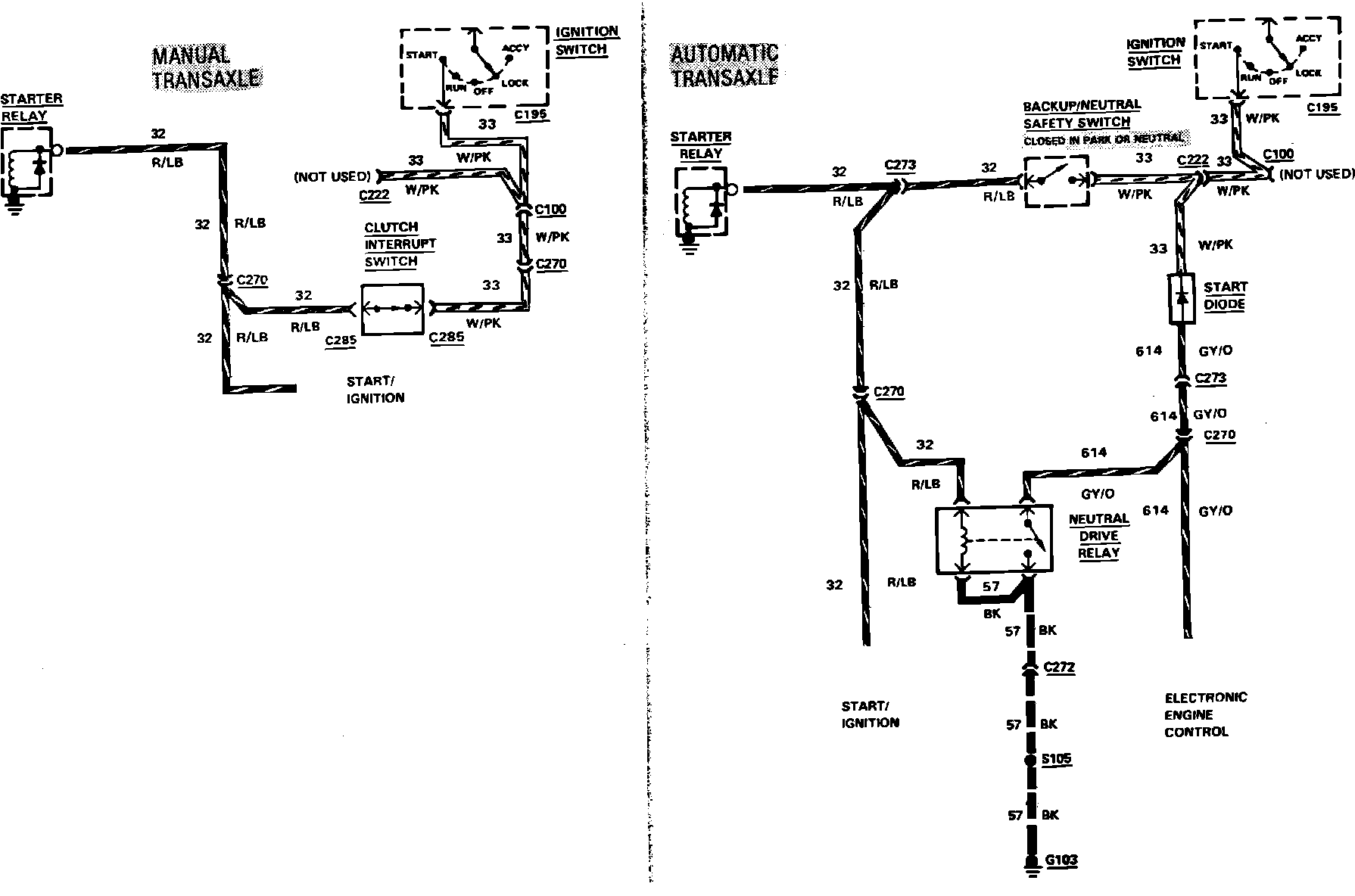

Fig. 52 Starting System Wiring Circuit. Gasoline Engines W/EFI:
