Home >> Mercury >> 1986 >> Lynx L4-122 2.0L DSL VIN H FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Ignition Key Warning >> 3 Door

3 Door

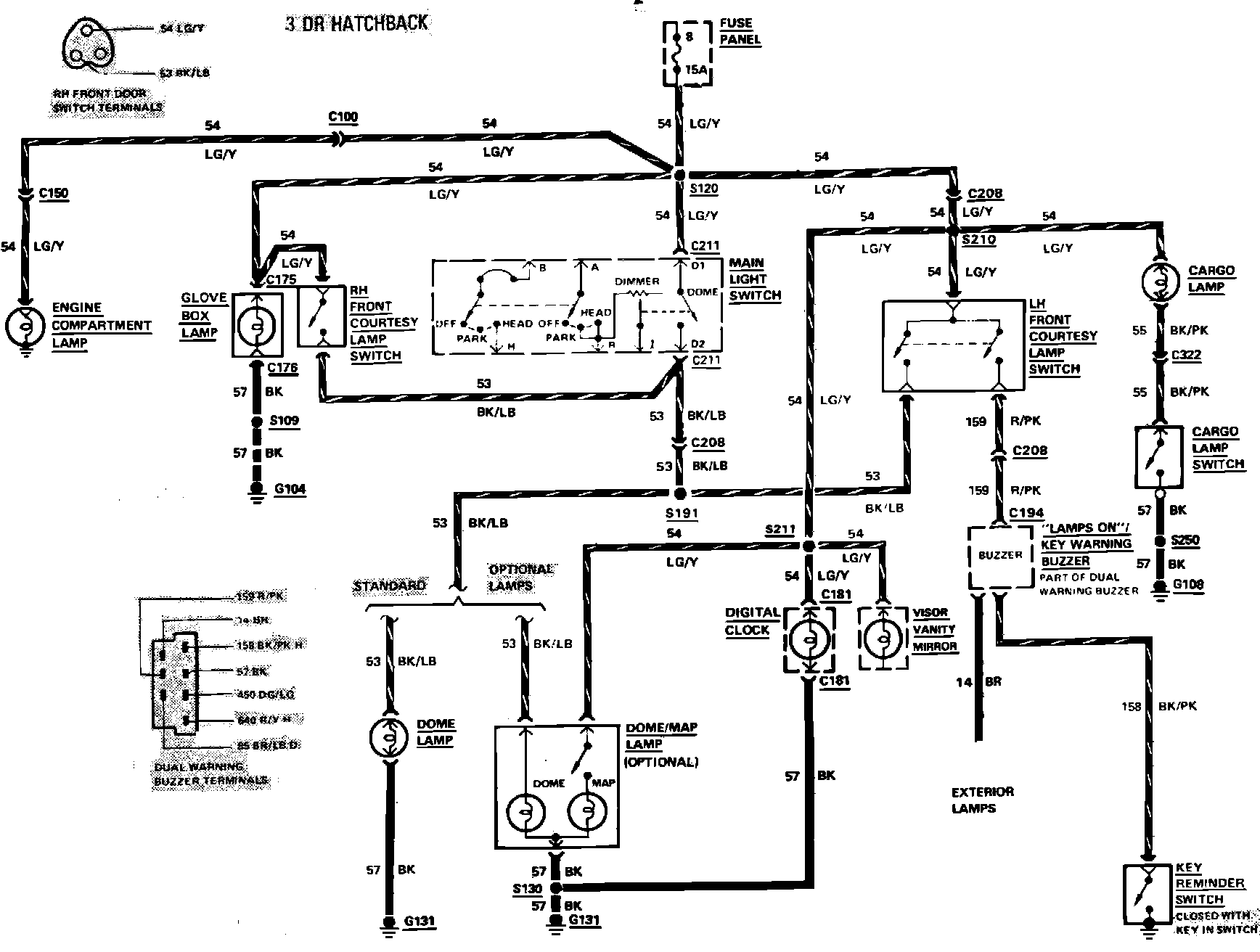

Fig. 15 Courtesy Lamps, Key Warning & Lamps On Reminder Wiring Circuit. 3 Door Models:
