System Diagram

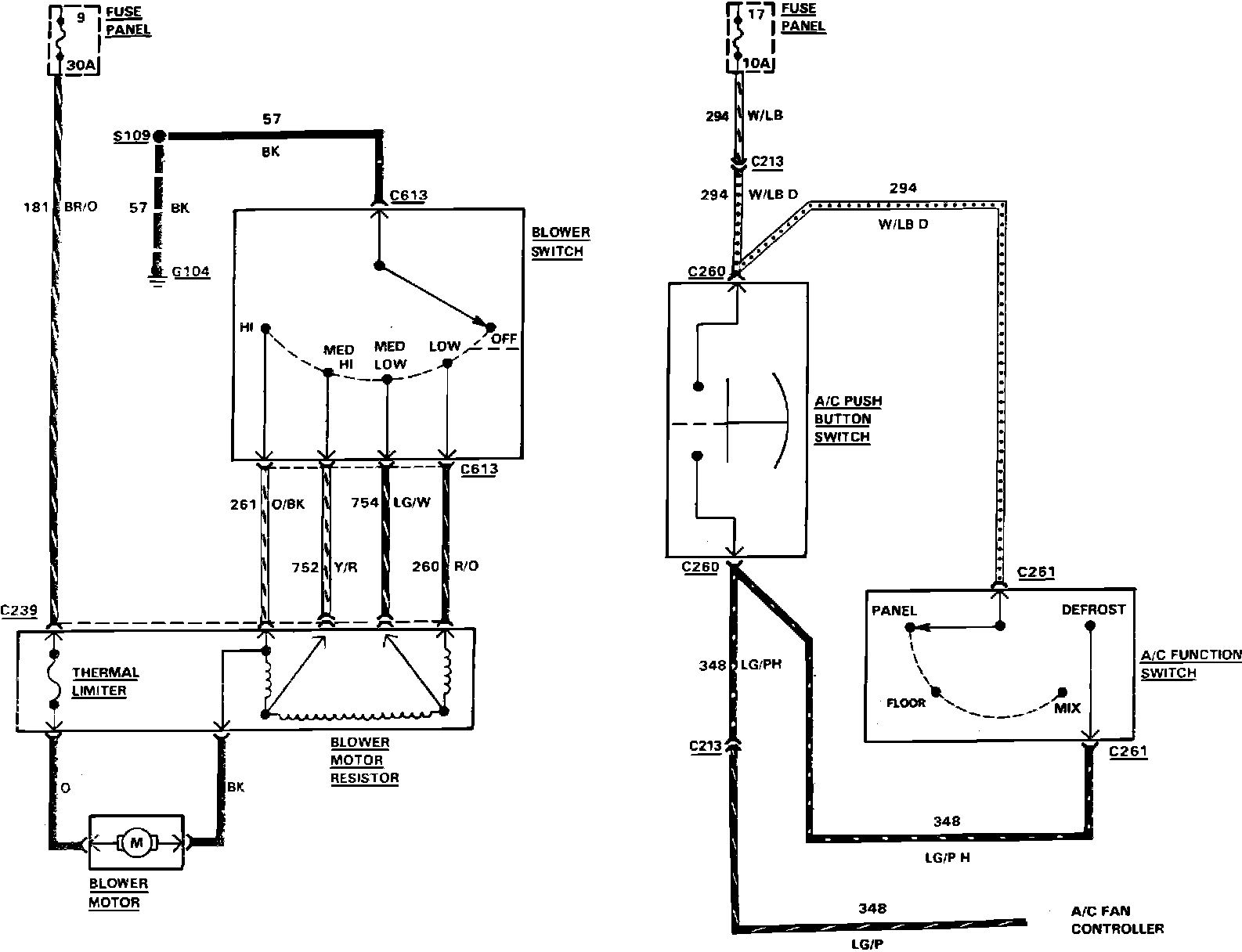

Fig. 2 Air Conditioning & Heater Control Wiring Circuit:



Fig. 5 Air Conditioning, Heater & Cooling Fan Wiring Circuit. Diesel Engine & Manual Transmission:
