Home >> Mercury >> 1986 >> Lynx L4-122 2.0L DSL VIN H FI >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Trunk / Liftgate Relay >> Diagrams >> Electrical Diagrams >> 4 Door Liftgate Model

4 Door Liftgate Model

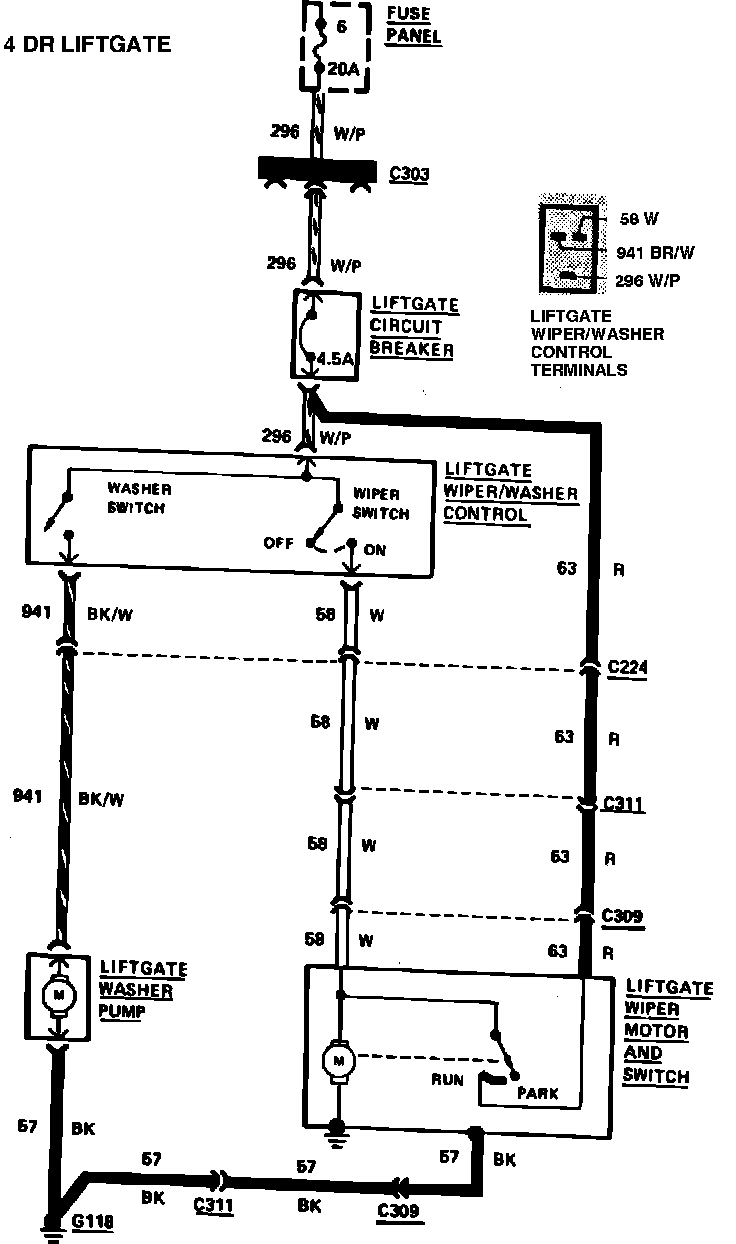

Fig. 63 Liftgate Release & Liftgate Wiper/Washer Wiring Circuit. 4 Door Liftgate Models:
