Home >> Mercury >> 1986 >> Lynx L4-122 2.0L DSL VIN H FI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Stereo

Stereo

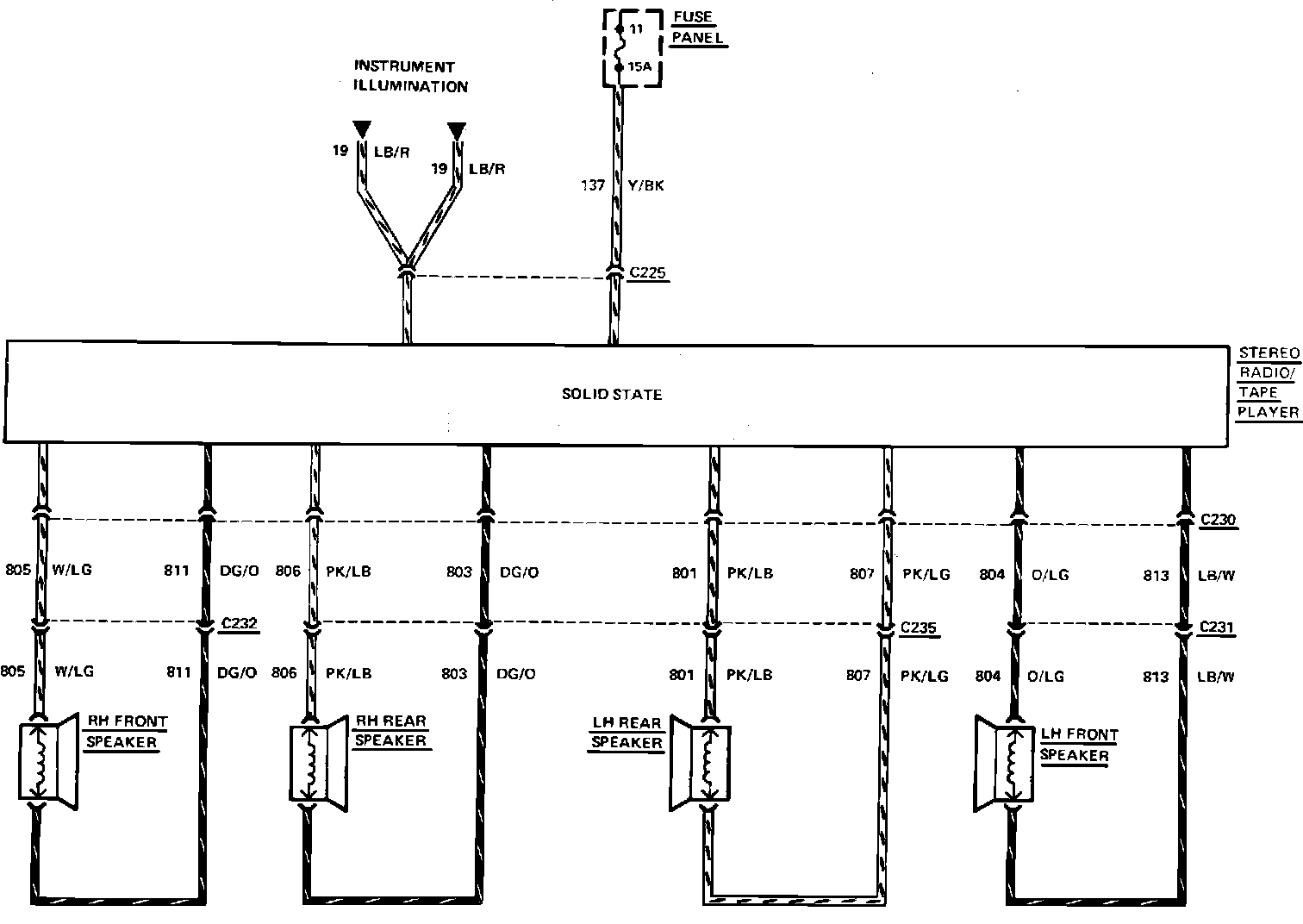

Fig. 49 Radio (Stereo) Wiring Circuit:
