Mercury
>>
1986
>>
Lynx L4-116 1.9L VIN J FI HP
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

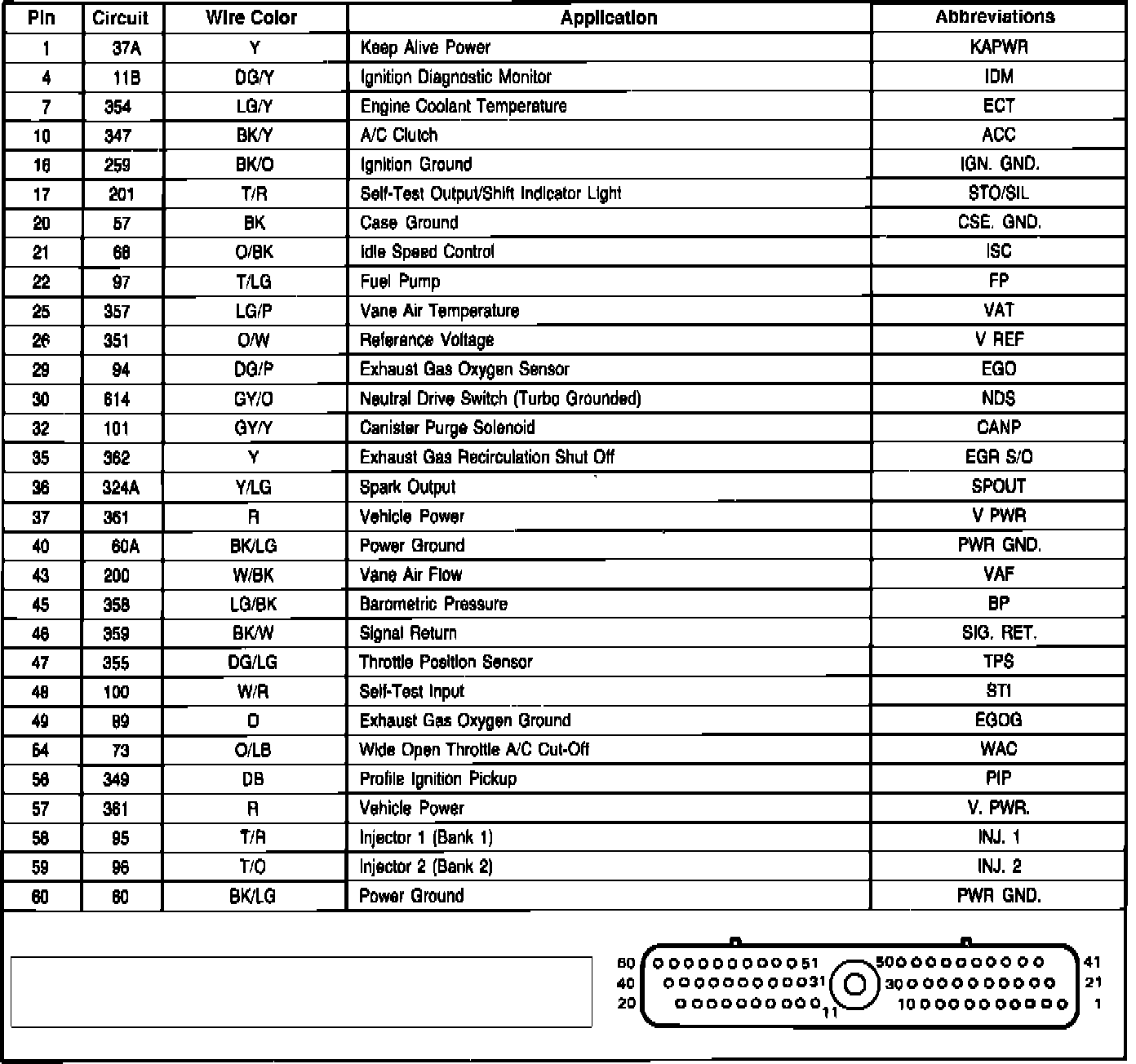

Fig. 215 EEC-IV module connector pin usage. 1986 4-116 EFI engine:
