Mercury
>>
1986
>>
Lynx L4-116 1.9L VIN 9 2-bbl
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
(G102 & 103) Models W/EFI & Manual Transaxle
(G102 & 103) Models W/EFI & Manual Transaxle

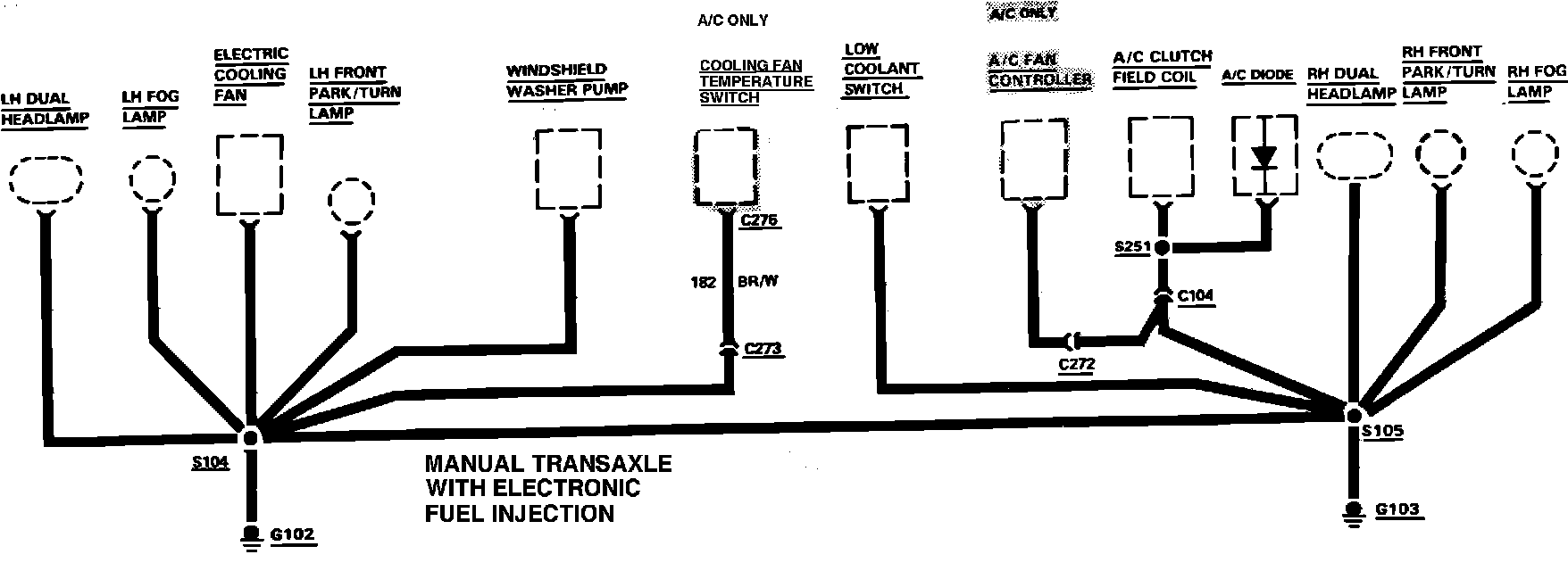

Fig. 26 Ground Distribution Wiring Circuit (G102 & 103). Models W/EFI & Manual Transaxle:
