(G101, 102, & 103) H.O. Engine With A/C

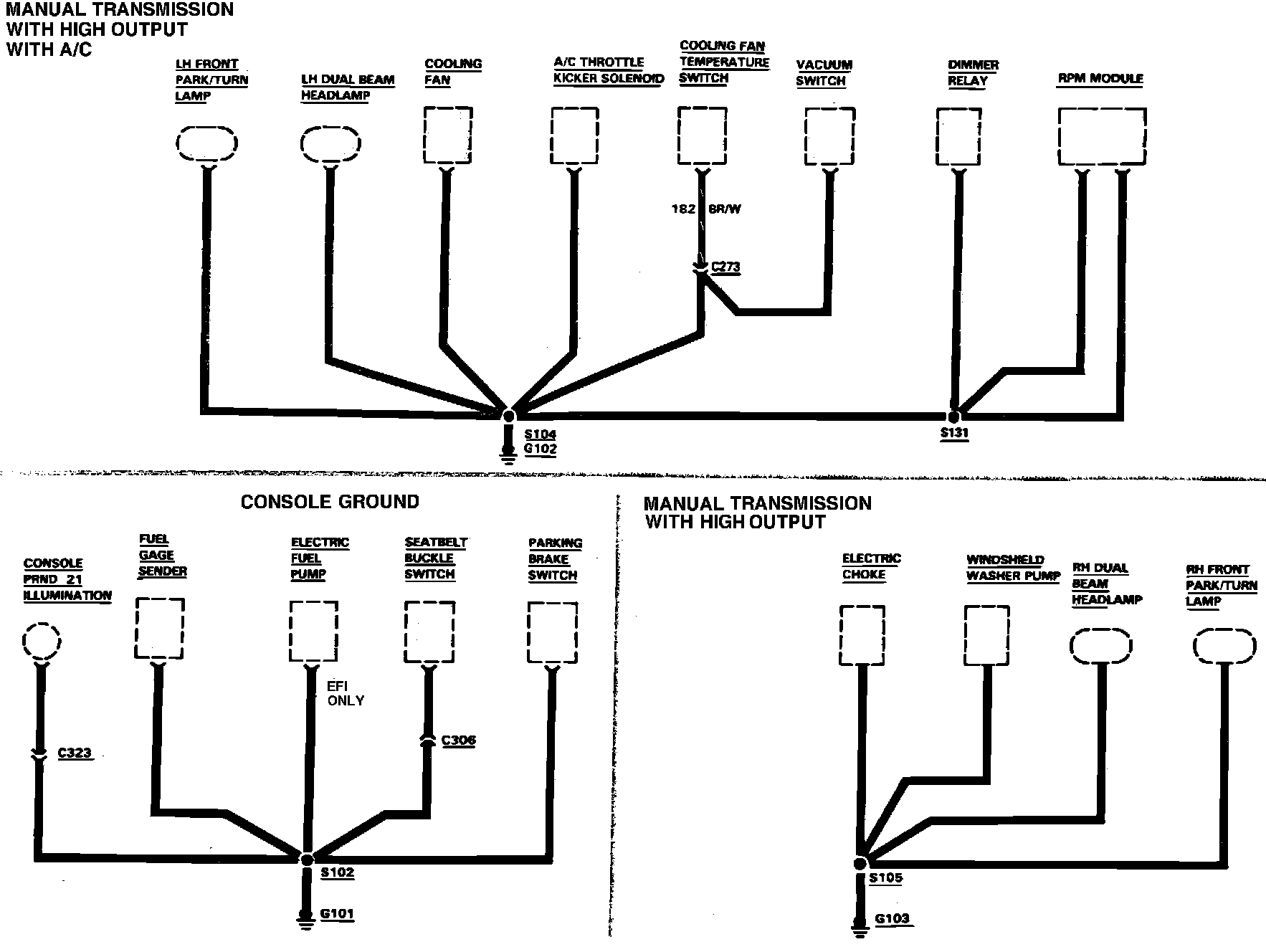

Fig. 23 Ground Distribution Wiring Circuit (G101, 102, & 103). H.O. Engine With A/C:
