Engine - Stalls On Brake Stops After Hot Soak
85ford05Article No. 85-5-18
STALLS - BRAKE STOPS - HOT ENGINE - 1.9L 2V
FORD 1986 ESCORT
LINCOLN-MERCURY 1986 LYNX
CALIBRATIONS: 6-07A, 6-08A
WARNING: This modification is authorized only for the listed engines. Performing this modification on other engine calibrations is unauthorized and could create liability under applicable federal or local laws.

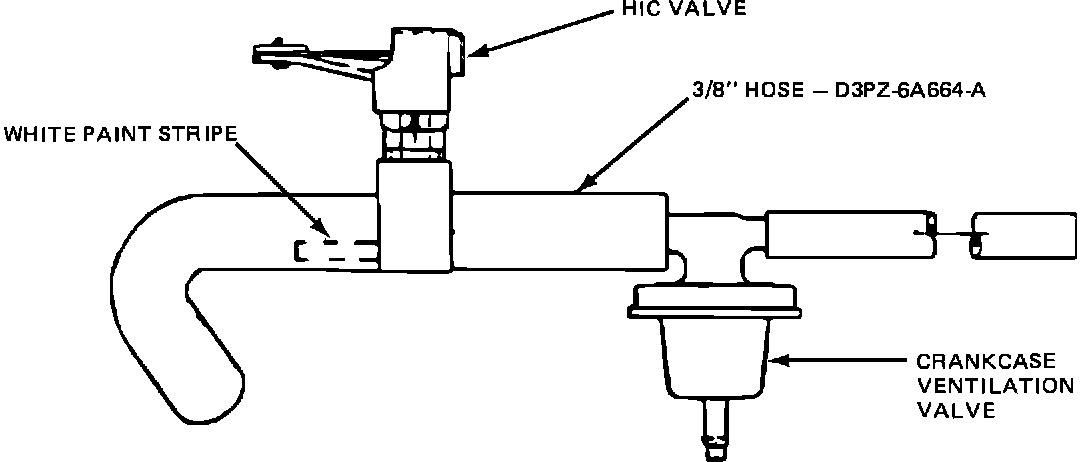

Figure 23 - VALVE AND HOSE CONFIGURATION:

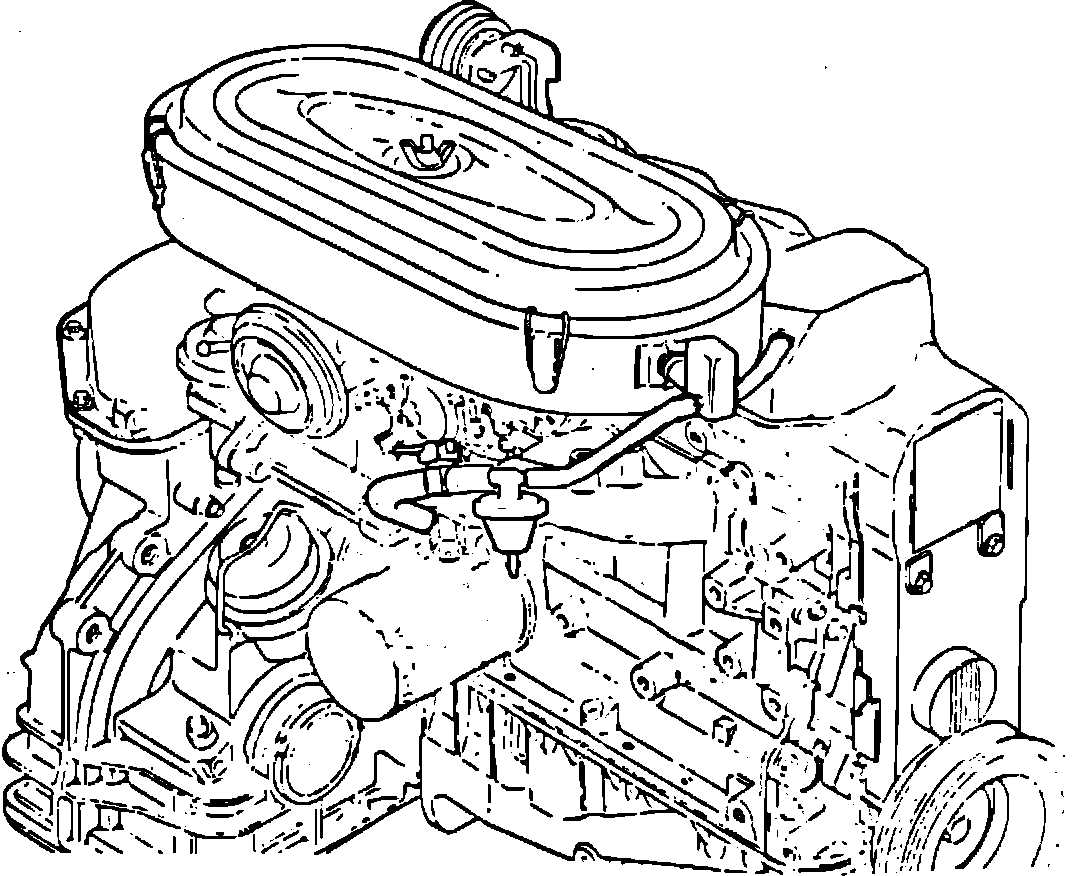

FIG. 24 - HIC VALVE INSTALLED ON ENGINE:
Vehicles which stall on brake stops after "hot soak" (start-up after parking warm engine for 15-60 minutes in high ambient temperatures) can be serviced by installing a hot idle compensator (H.I.C.) valve in the crankcase vent line. The H.I.C. valve adds additional air and prevents an overrich condition which could cause the stall.
Authorized Modifications Decal:
Obtain an Authorized Modifications decal and list the date, dealer number and summary of alterations performed. Select a prominent place adjacent to the Vehicle Emission Control Information decal suitable for installing the Authorized Modifications decal. Clean the area, install the decal and cover it with a clear plastic decal shield.
PART NUMBER PART NAME CLASS
E3FZ-98532-B H.I.C. Valve C
D3PZ-6A664-A Vacuum Hose - 3/8" B
Bulk - 25 ft.
379507-S T-3/8" S
WARRANTY STATUS: Reimbursable within the provisions ofthe Warranty and Policy Manual.
OPERATION: SP9890A85
TIME: 0.3 Hr. DLR. CODING: Basic Part No. DRIVE - Code: L7
