Fig. 3 Calib. Code 6-08S-R22 Calif.

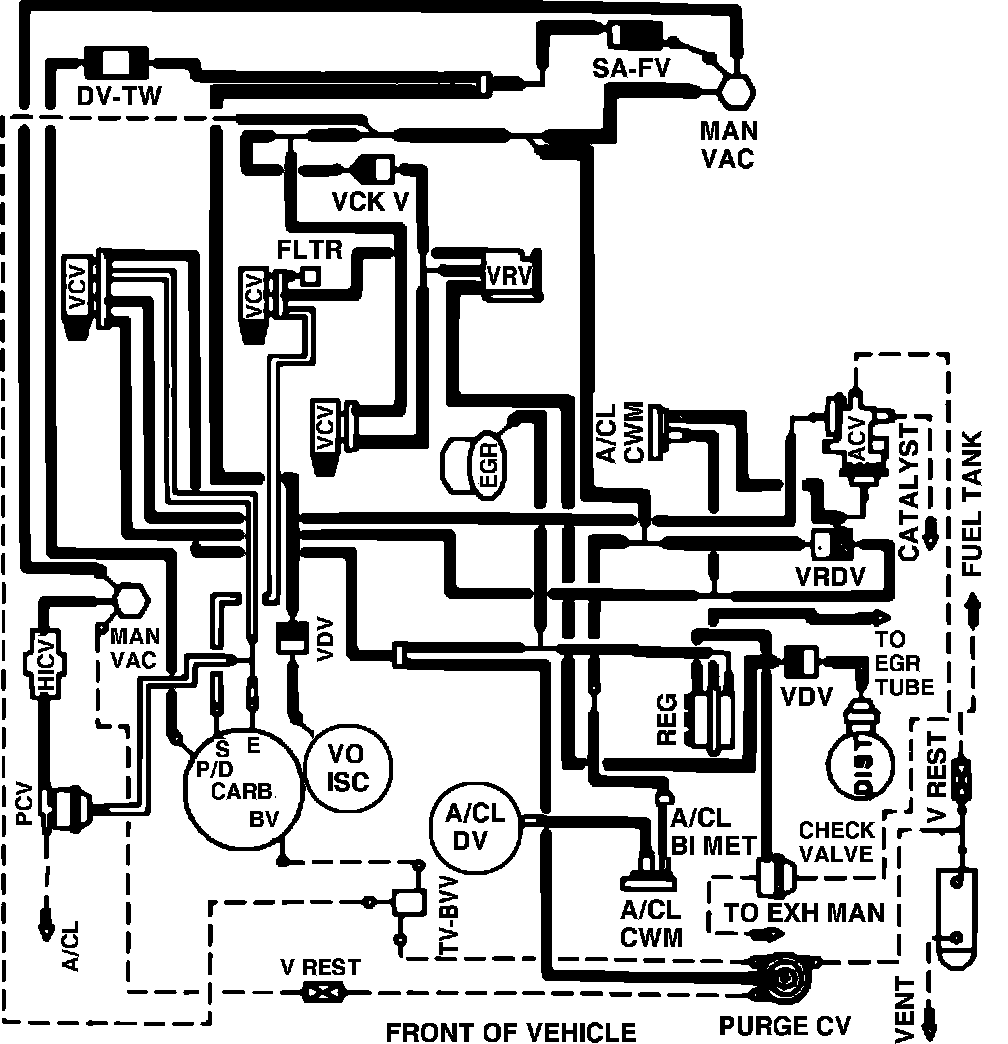

Fig. 3 Vacuum Hose Routing. 1986 4-116 2 Bbl. Auto. Trans. Calib. Code 6-08S-R22 Calif.:
