Home >> Mercury >> 1986 >> Lynx L4-116 1.9L VIN 9 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Fig. 1 Calib. Code 6-08A-R25 Exc. Calif.

Fig. 1 Calib. Code 6-08A-R25 Exc. Calif.

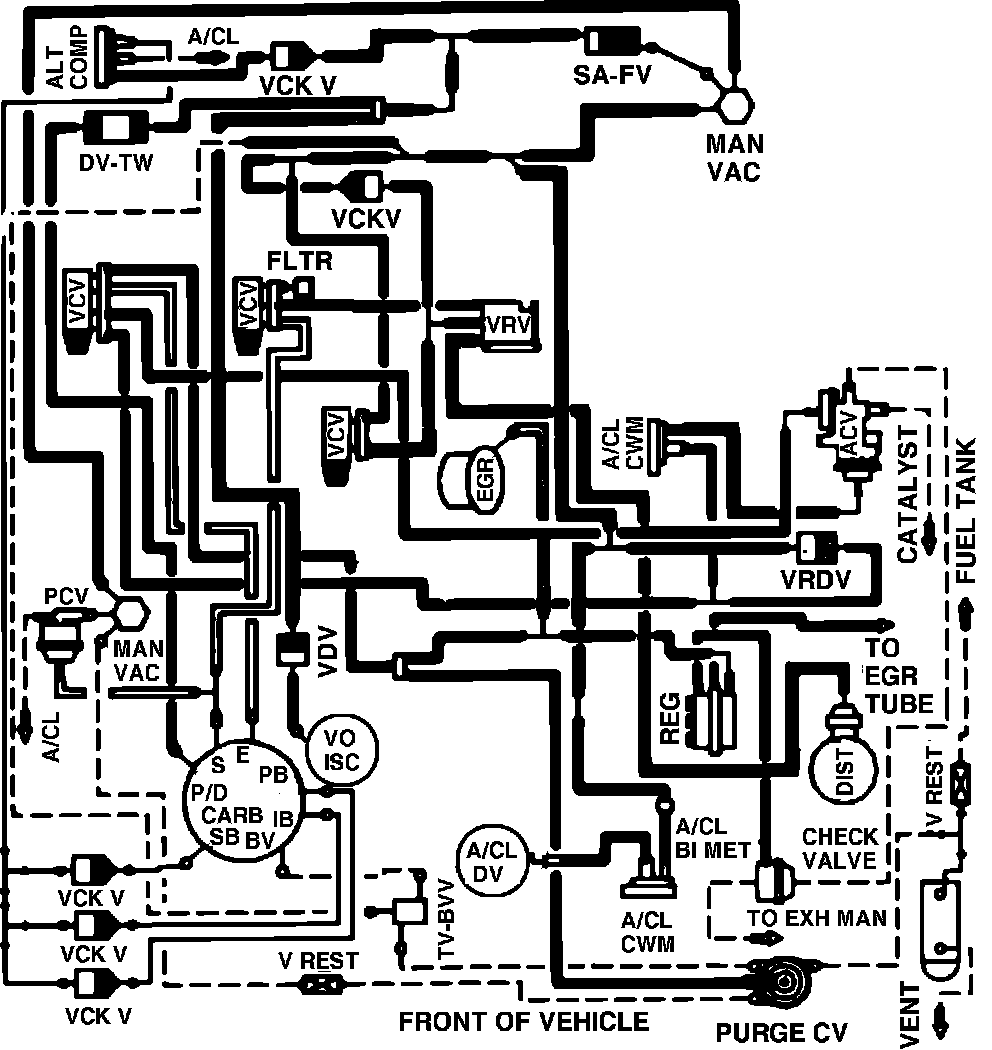

Fig. 1 Vacuum Hose Routing. 1986 4-116 2 Bbl. Auto. Trans. Calib. Code 6-08A-R25 Exc. Calif.:
