Attachment III - Technical Instructions
SUPPLEMENTAL SERVICE PROCEDUREINFORMATION FOR EMISSIONS RECALLS 93E38
^ This supplemental service procedure information is provided to assure that the vacuum delay value is removed from the air control side of the combination air control and bypass valve. The delay valve must be removed and discarded.
^ Refer to the illustrations to assure that the vacuum delay valve has been removed.

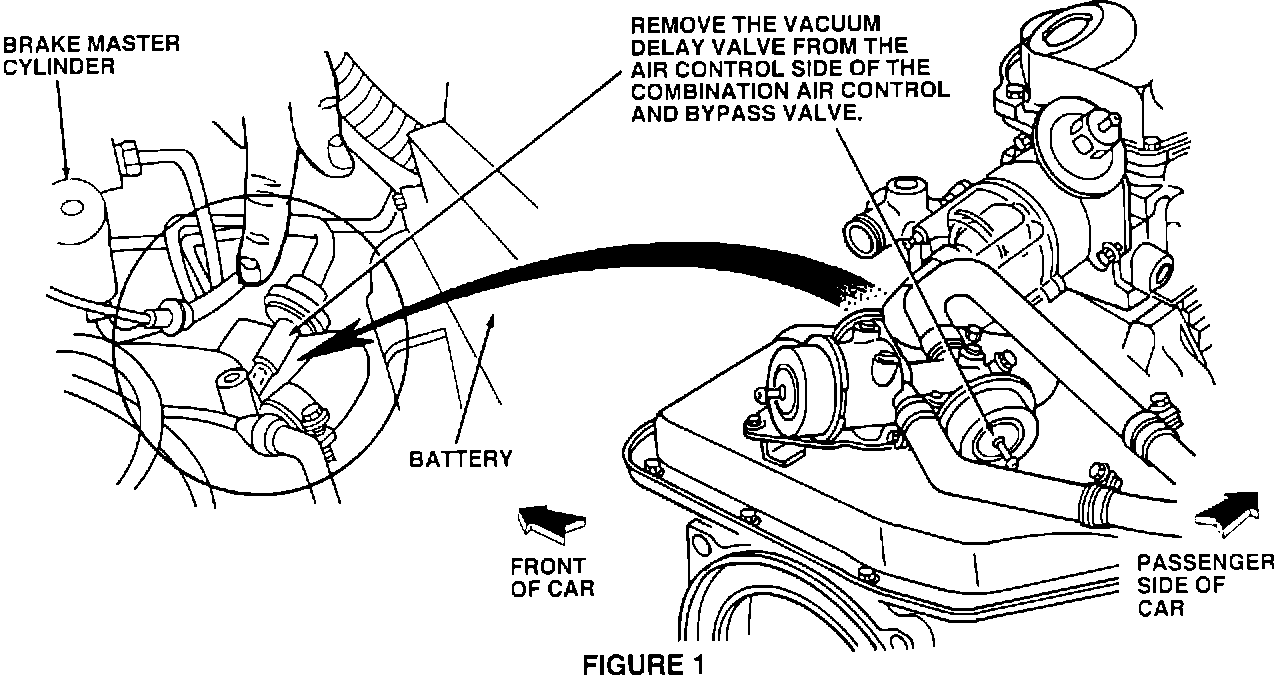

^ Refer to Figure 1. Locate the air control side of the combination air control and bypass valve.

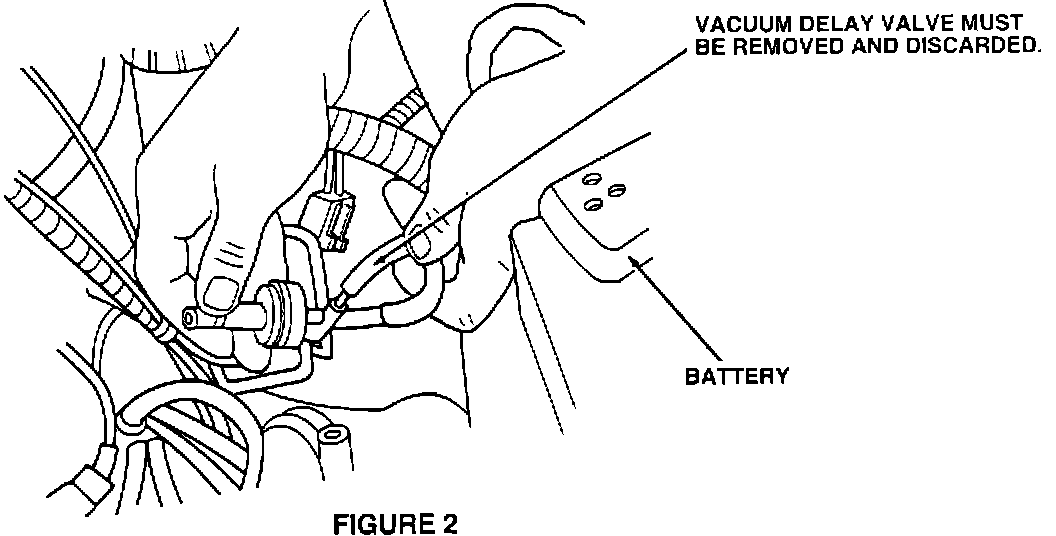

^ Refer to Figure 2. Assure that the valve is removed and discarded.

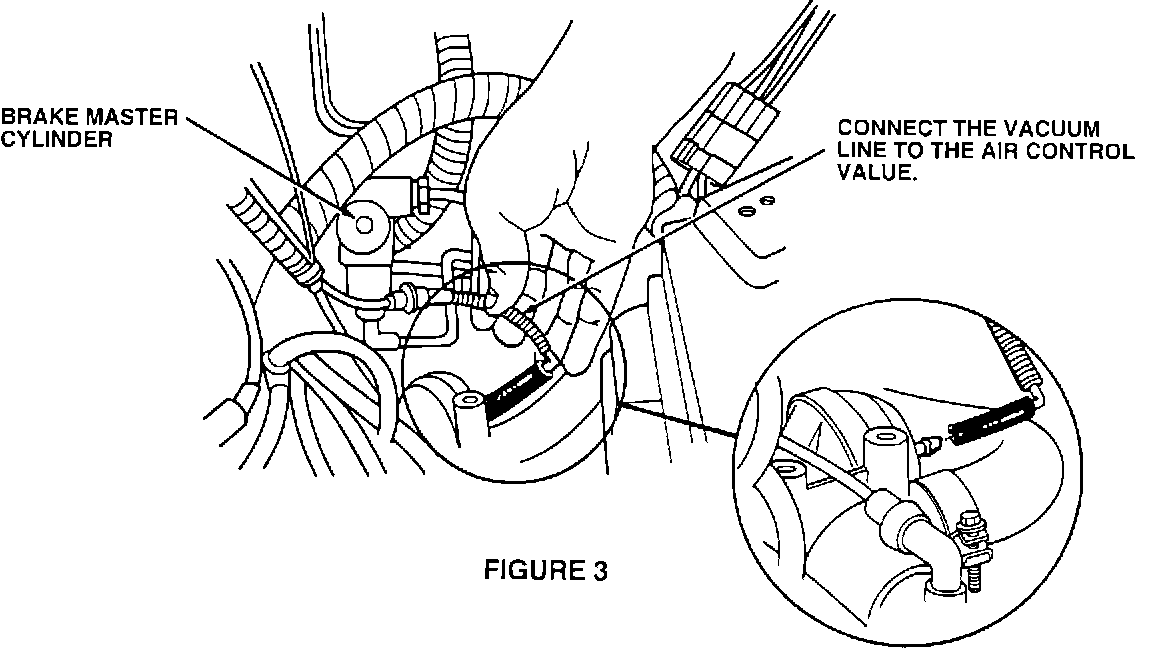

^ Refer to Figure 3. Connect the vacuum line to the air control valve side of the combination air control and bypass valve as shown.
