Electrical Diagrams

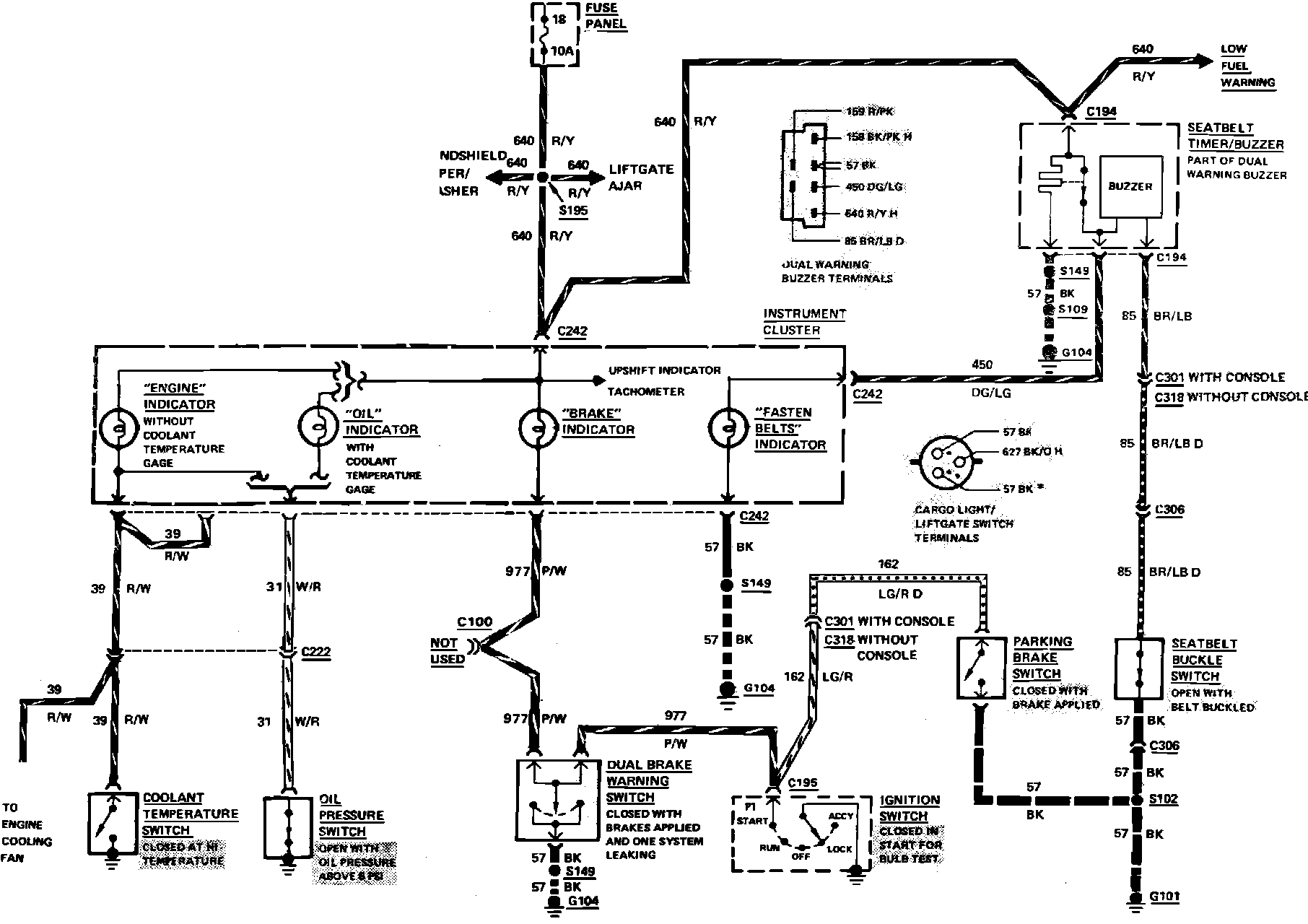

Fig. 8 Brake, Engine, Oil, Seat Belt & Tailgate Ajar Warning Indicator Wiring Circuit (Part 1 of 2). Gasoline Engine:

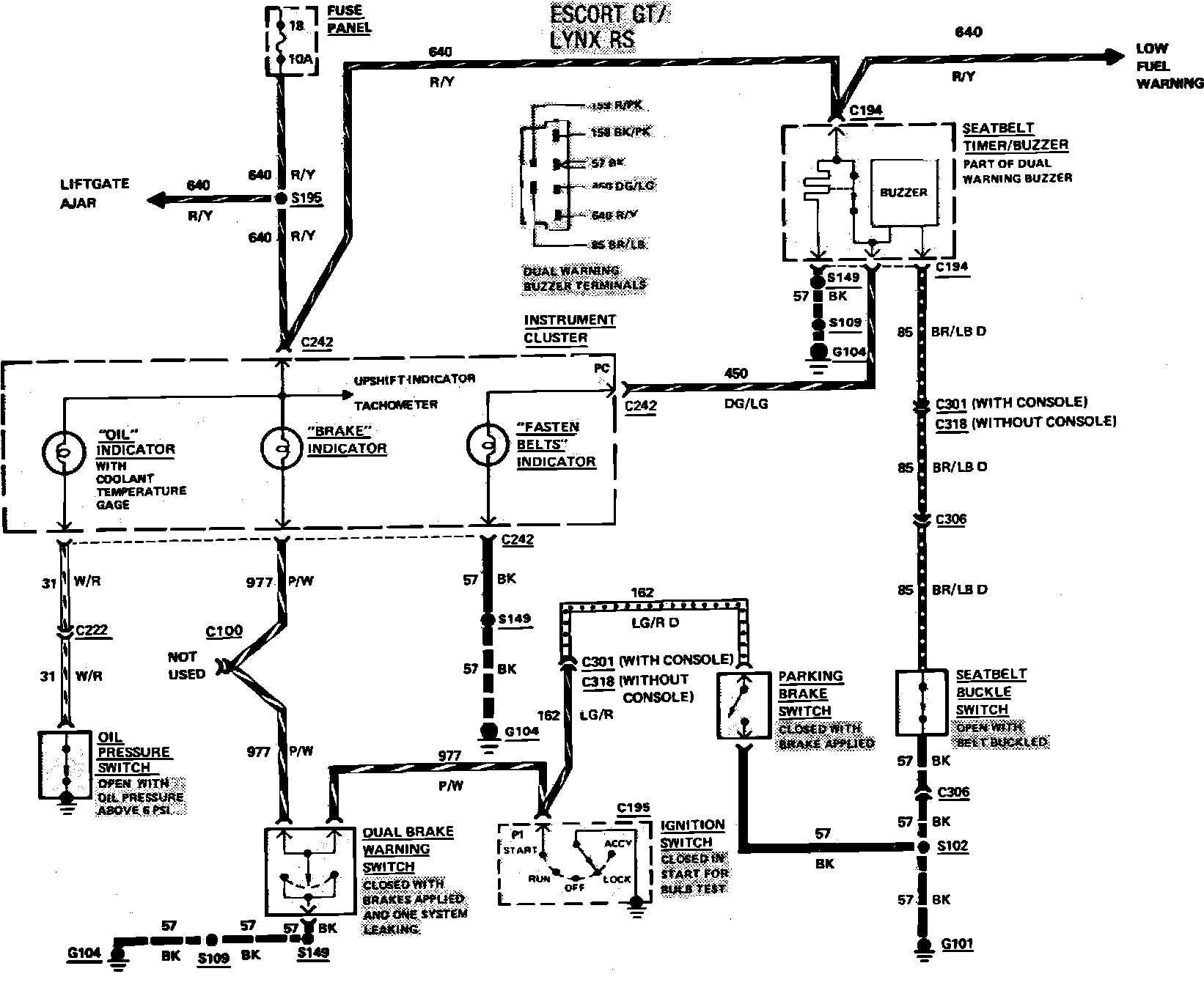

Fig. 8 Brake, Engine, Oil, Seat Belt & Tailgate Ajar Warning Indicator Wiring Circuit (Part 2 of 2). Gasoline Engine:
