Speed Control - Shop Manual Revision

86ford16

Article No. 86-11-10


SPEED CONTROL - SHOP MANUAL REVISION - VOLUME A

FORD 1986 CROWN VICTORIA

LINCOLN-MERCURY 1986 GRAND MARQUIS, LINCOLN TOWN CAR

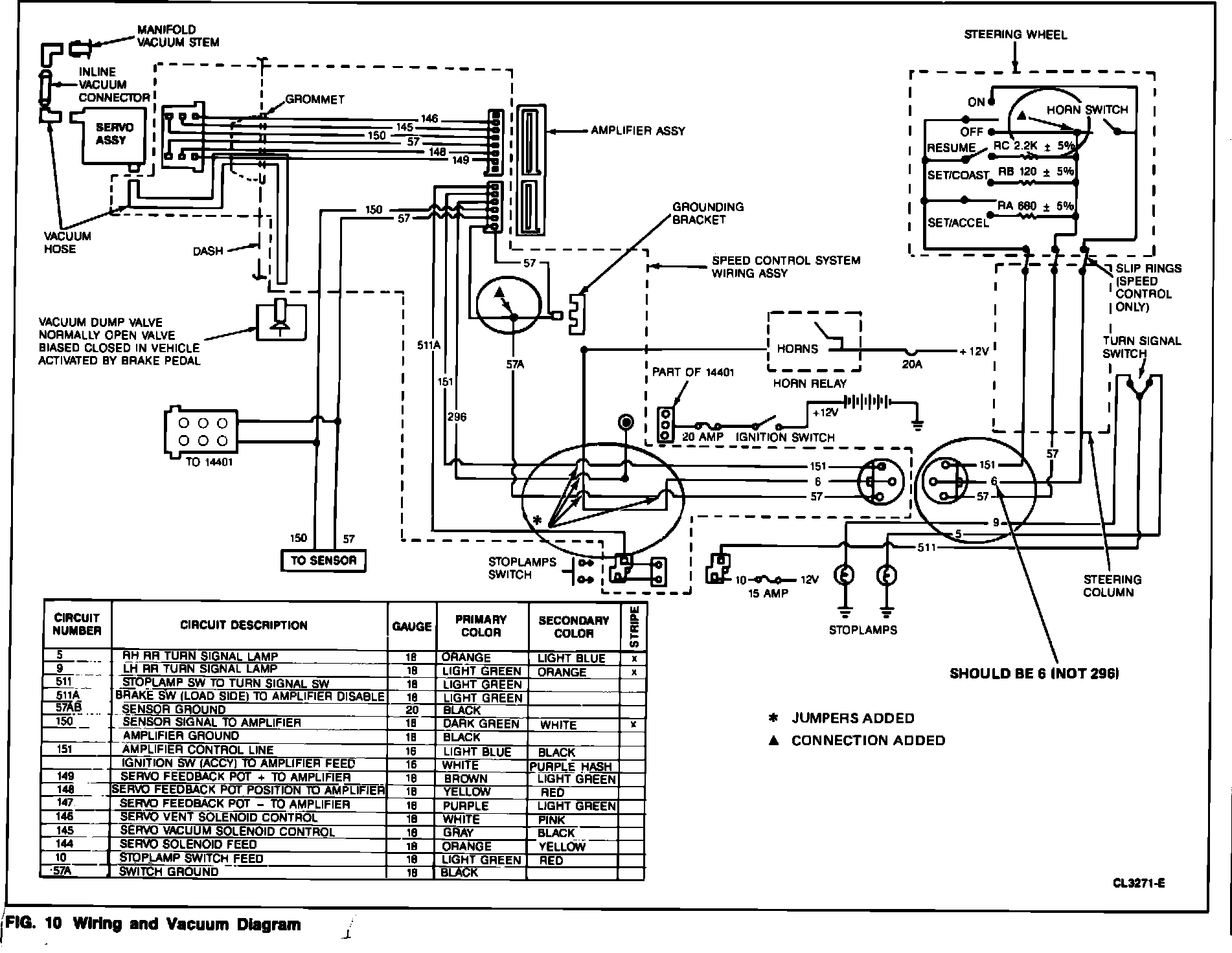

FIGURE 10 - WIRING AND VACUUM DIAGRAM:

Section 37-05-8 of the 1986 Car Shop Manual, Volume A, shows an incorrect illustration of the wiring and vacuum diagram for the Speed Control System. The following revised Shop Manual page shows the corrected diagram.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
