Parking Brake Lever: Service and Repair

Removal

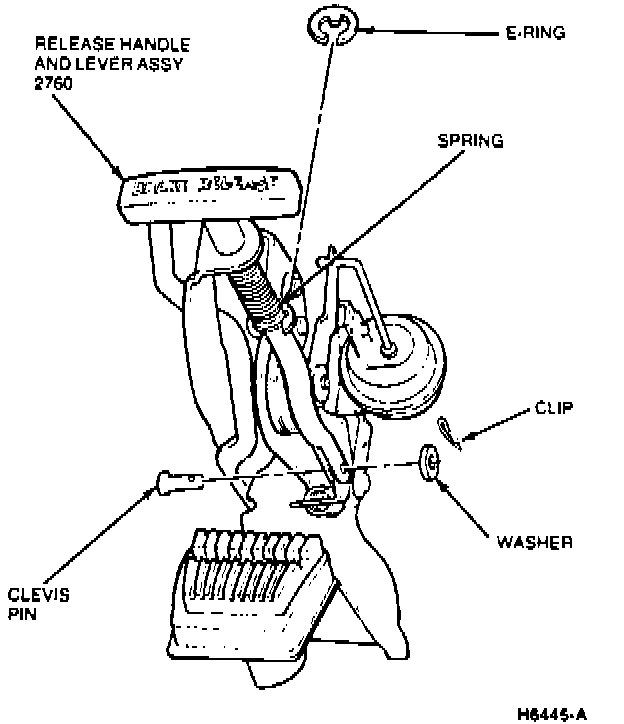

1. Remove clip, flat washer and clevis pin.
2. Remove "E" ring from release handle shafts.





3. Slide spring off release handle while removing handle from parking brake control assembly.

Installation

1. Position release handle on parking brake control assembly.
2. Position spring on release handle shaft and install " E" ring.
3. Align the release rod with hole in parking brake release lever and install clevis pin, washer and clip.
