1986
>>
Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Locations
>>
CFI Engines (Alternate)
CFI Engines (Alternate)

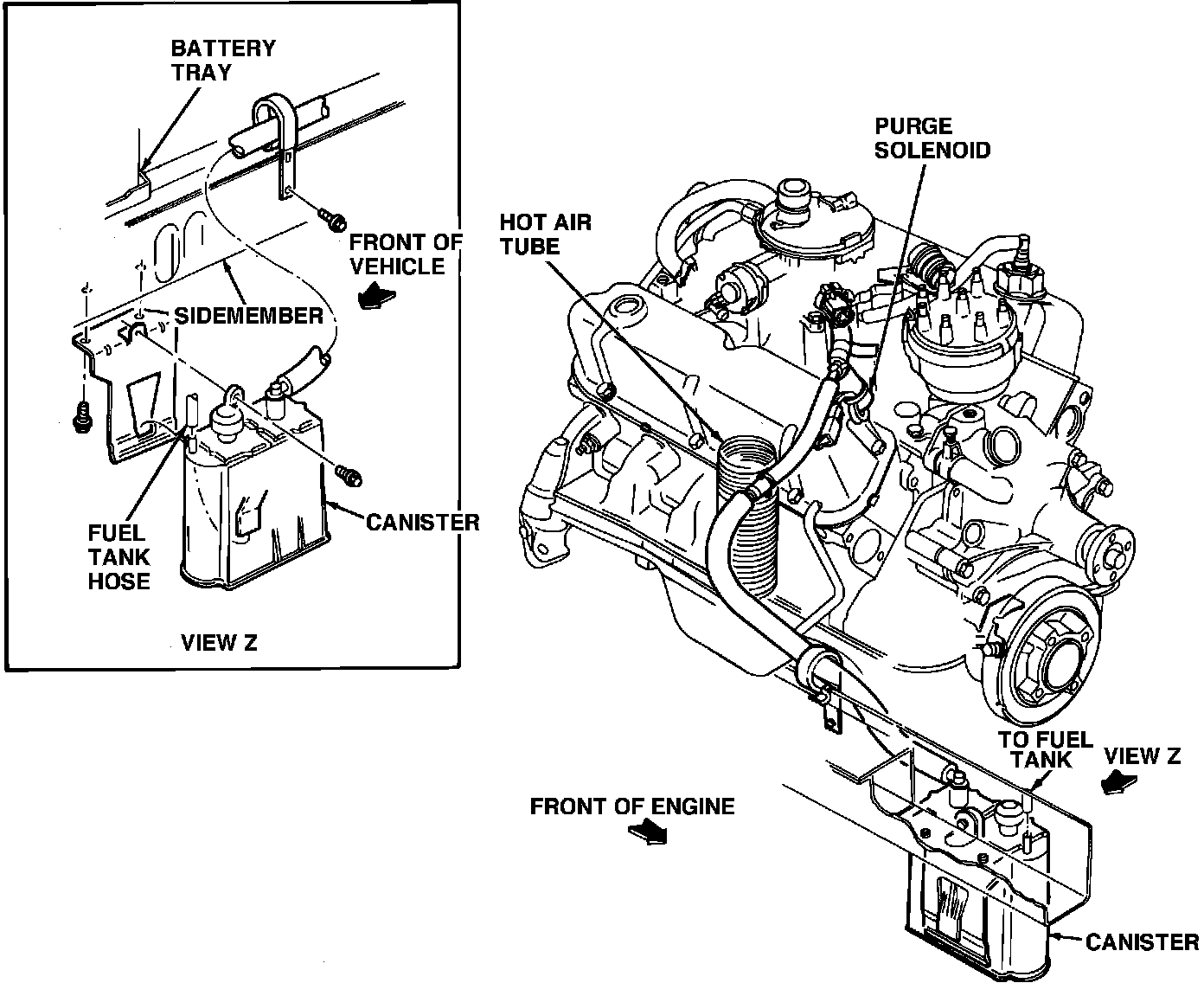

Fig. 16 Canister Venting System. 1985 - 88 V8-302 CFI Engines (Alternate):
