Without Keyless Entry, Illuminated Entry, Power Locks/Windows.

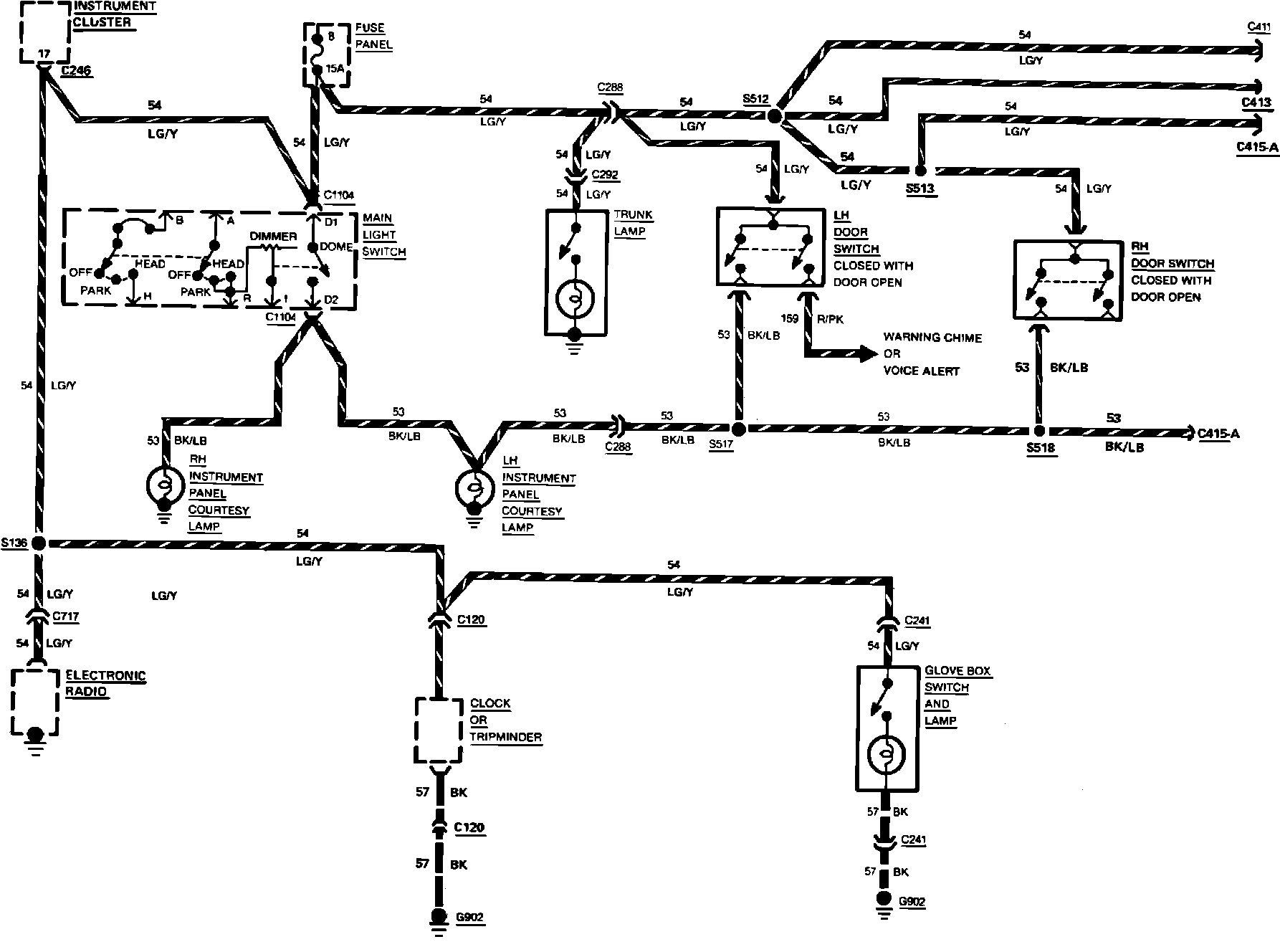

Fig. 17 Courtesy Lamp Wiring Circuit (Part 1 of 2). Less Keyless Entry, Illuminated Entry, Power Door Locks Or Power Windows:

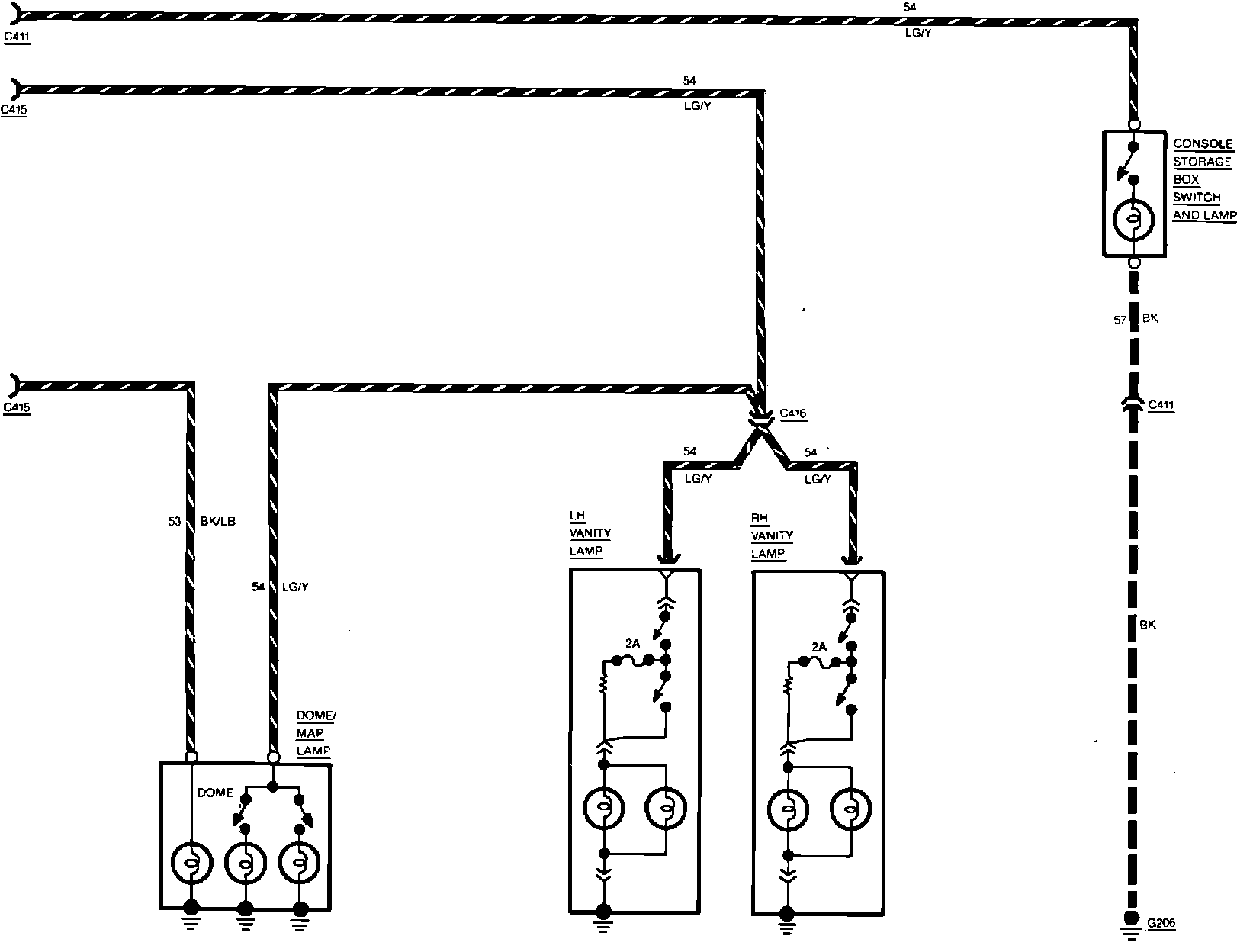

Fig. 17 Courtesy Lamp Wiring Circuit (Part 2 of 2). Less Keyless Entry, Illuminated Entry, Power Door Locks Or Power Windows:
