Fuel Gauge: Testing and Inspection

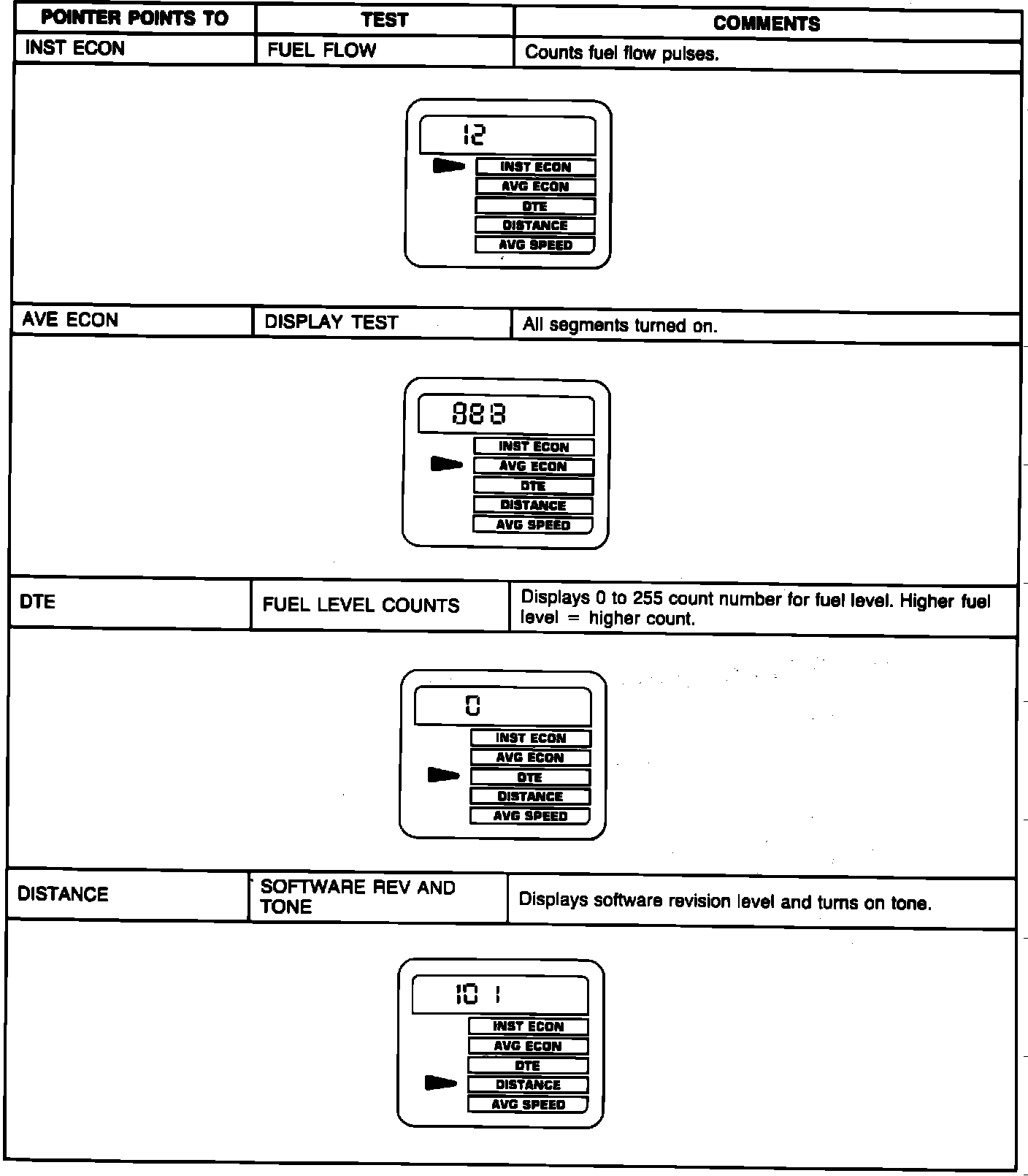

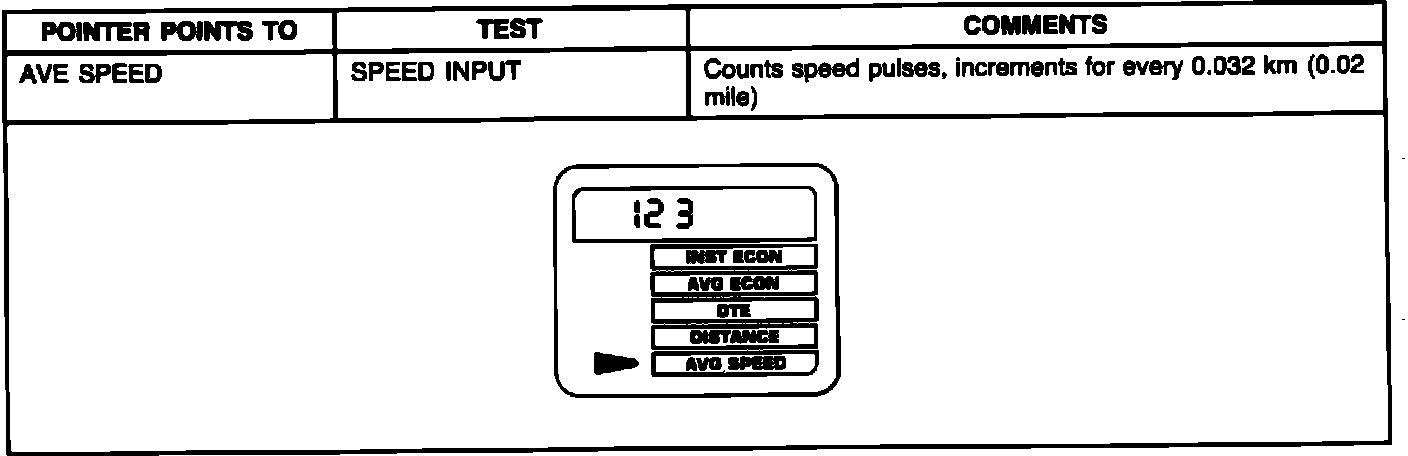

Enter test mode by holding select button in for at least five seconds until test display appears. Advance tests by successive presses of the select button. Leave the test mode by pressing reset button or turning OFF the power.
