Rear Crankshaft Main Bearing Seal: Service and Repair

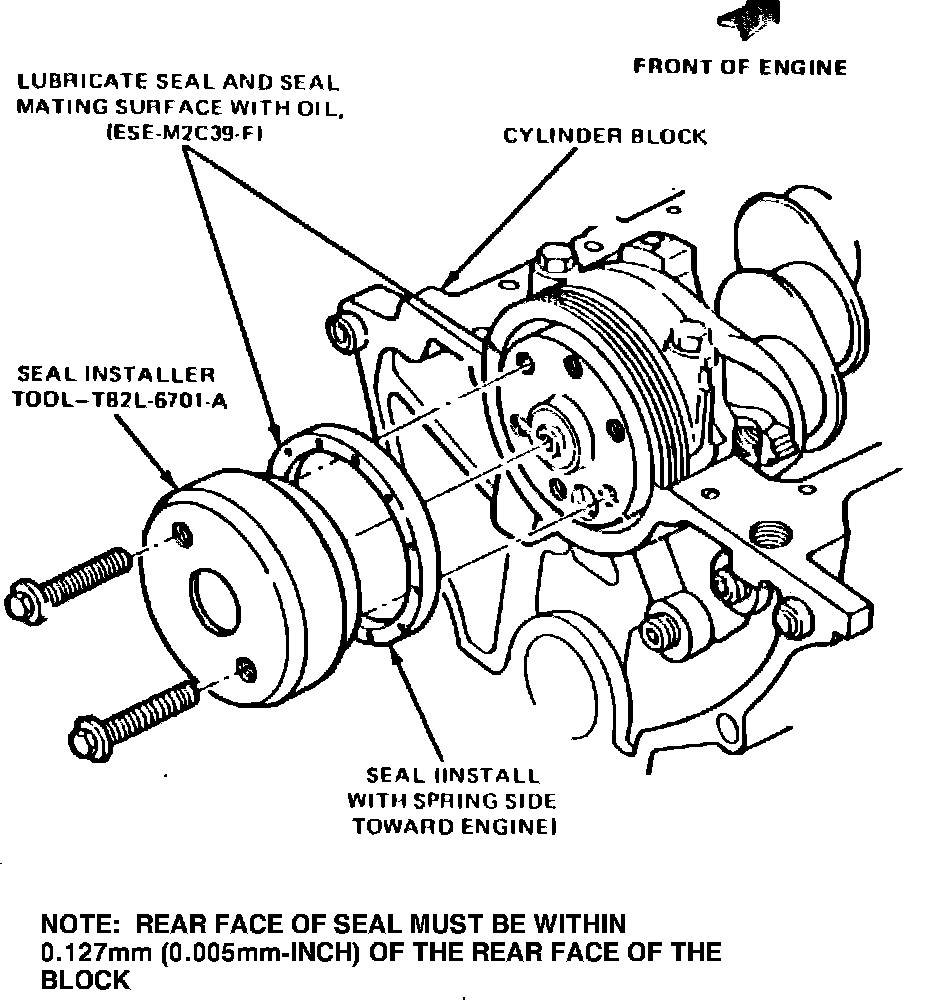

Fig. 35 Crankshaft rear seal installation. 1984-88:

1984-88

1. Using a sharp tool, punch one hole into seal metal surface between seal lip and engine block.
2. Remove seal using slide hammer No. T82L-9533-B or equivalent. Use care to prevent damaging the sealing surface.
3. Lubricate new seal with clean engine oil and install using tool No. T82L-6701-A or equivalent. Tighten bolts alternately to seat seal properly, Fig. 35.
