Charging System

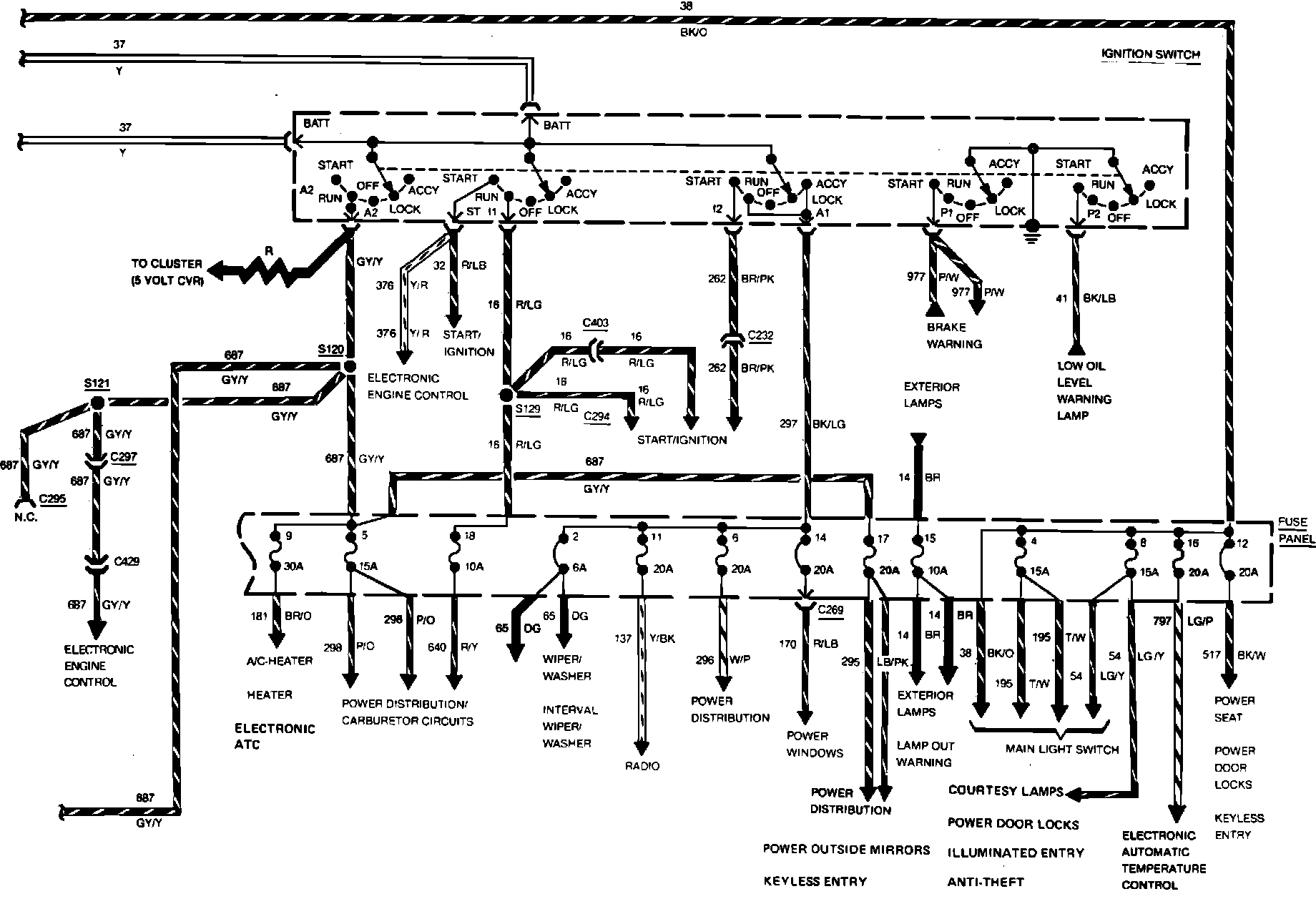

Fig. 13 Charging System & Power Distribution Wiring Circuit (Part 1 of 2). V8-302 Engine:

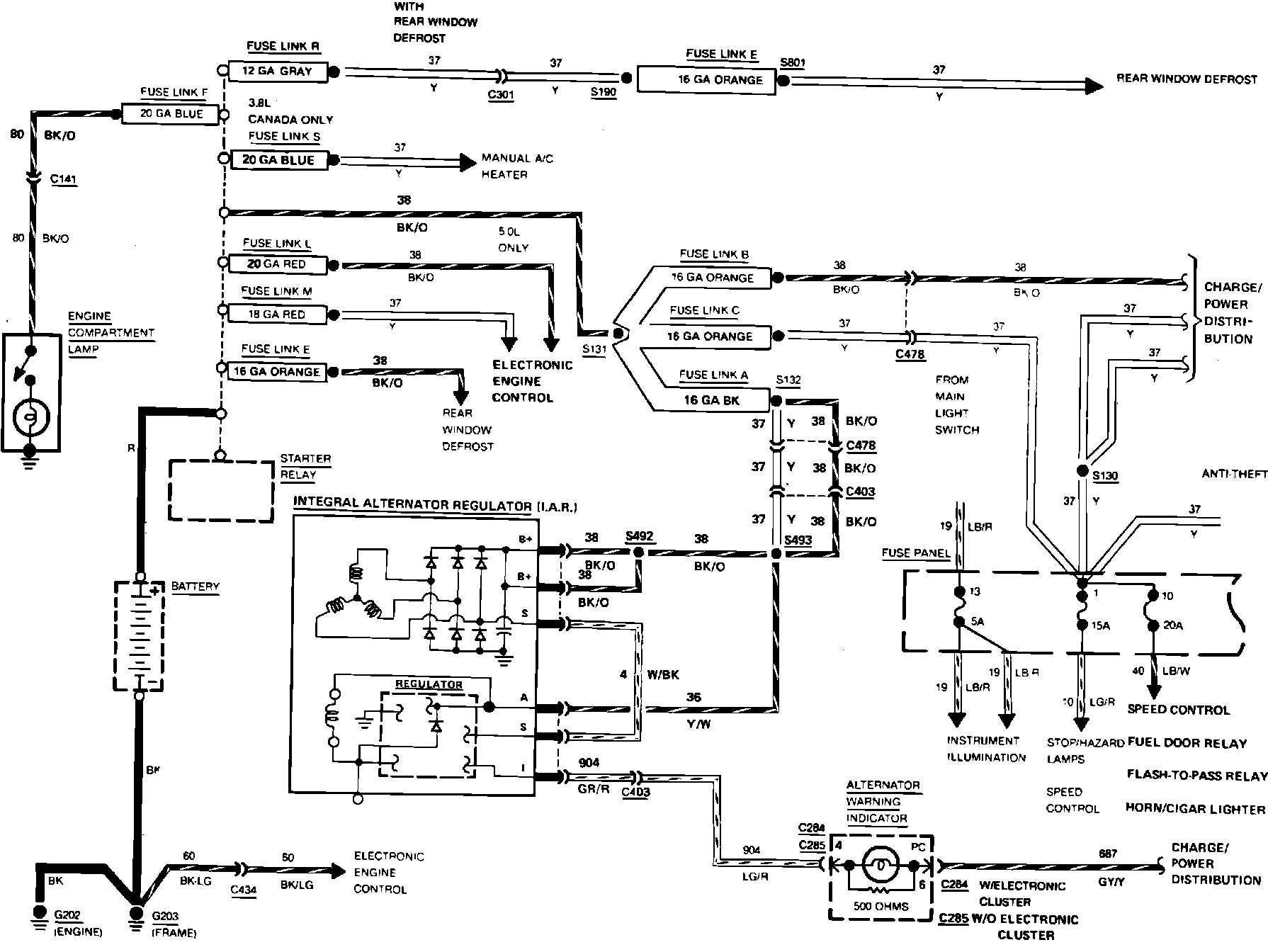

Fig. 13 Charging System & Power Distribution Wiring Circuit (Part 2 of 2). V8-302 Engine:
